Name: Rexroth Z2FS6B3-4X/1QV Twin throttle check valve
Brand: Saar HK Electronic Limited
SKU: Rexroth Twin throttle check valve Z2FS6B3-4X/1QV
Availability: InStock

Home Products Check Valves

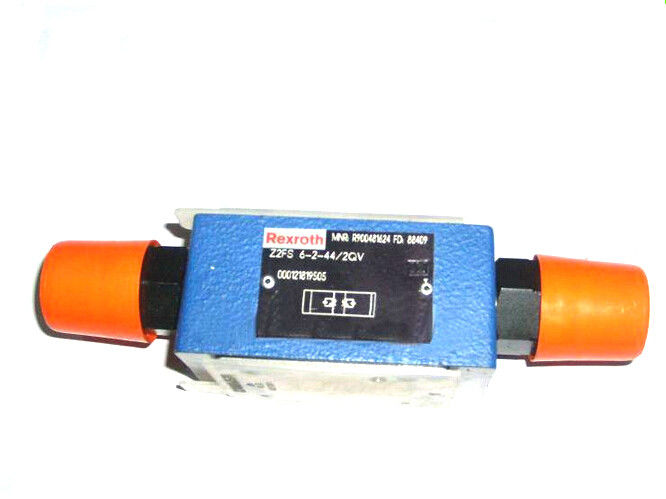

Rexroth Z2FS6B3-4X/1QV Twin throttle check valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	Rexroth Twin throttle check valve Z2FS6B3-4X/1QV

Contact Now

Detailed Product Description

Rexroth Z2FS6 Twin throttle check valve

Size 6

Component series 4X

Maximum operating pressure 315 bar

Maximum flow 80 l/min

Feature:

– Sandwich plate valve

– Porting pattern according to DIN 24340 form A

– Porting pattern according to ISO 4401-03-02-0-05

(with locating hole)

– For the main or pilot flow limitation of 2 actuator ports

– 4 adjustment types:

• Set screw with lock nut and protective cap

• Lockable rotary knob with scale

• Spindle with internal hexagon and scale

• Rotary knob with scale

– For supply or discharge throttling

Rexroth Z2FS6 Twin throttle check valve Model List:

R900481623	Z2FS6-2-4X/1QV
R900481624	Z2FS6-2-4X/2QV
R900727967	Z2FS6-2-4X/2QV/60
R900586224	Z2FS6-3-4X/1QV
R900455714	Z2FS6-3-4X/2QV
R900582719	Z2FS6-5-4X/1QV
R900476838	Z2FS6-5-4X/2QV
R900581165	Z2FS6-7-4X/1QV
R900441810	Z2FS6-7-4X/2QV
R900581526	Z2FS6A2-4X/1QV
R900439389	Z2FS6A2-4X/2QV
R901228007	Z2FS6A2-4X/2QV/60
R900507951	Z2FS6A3-4X/1QV
R900502066	Z2FS6A3-4X/2QV
R900532275	Z2FS6A5-4X/1QV
R900591603	Z2FS6A5-4X/2QV
R900584700	Z2FS6A7-4X/1QV
R900451197	Z2FS6A7-4X/2QV
R900438760	Z2FS6B2-4X/1QV
R900440565	Z2FS6B2-4X/2QV
R900584417	Z2FS6B3-4X/1QV
R900582339	Z2FS6B3-4X/2QV
R900595113	Z2FS6B5-4X/1QV
R900595709	Z2FS6B5-4X/2QV
R900560493	Z2FS6B7-4X/1QV
R900465879	Z2FS6B7-4X/2QV
