Michanical Elliptical Gear Flow Meter

Product Details:

Place of Origin:	China
Brand Name:	ShenGang
Model Number:	Michanical Elliptical Gear Flow Meter

Contact Now

Detailed Product Description

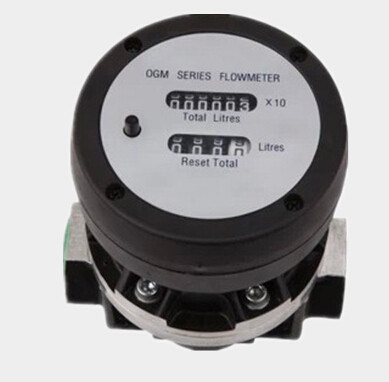

Michanical Elliptical Gear Flow Meter

OMG-25/40/50 Aluminum Oval Gear MeterCharacteristic:

OGM-25/40/50 aluminum oval gear meter has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and aurability,applying in the petroleum,chemical,food industry,etc.

Oval gear flow meter, Diesel Kerosene Gasoline electronic, digital, mechanical, pulser, Aluminium, PPS Rotor, High Accuracy

Hot Tags: OGM-25/40/50 Aluminum Oval Gear Meter

Technical Data:
Model:	OGM-25	OGM-40	OGM-50
Size:	1"	1"	2"
Min.Flow Rate:	20L/min	25L/min	30L/min
Max.Flow Rate:	120L/min	250L/min	300L/min
Accueacy:	±0.5%	±0.5%	±0.5%
Repeatability:	≤0.03%	≤0.03%	≤0.03%
Max.Viscosity:	1000CPS	1000CPS	1000CPS
Max.Operating Pressuer:	3.4MPa	1.8MPa	1.8MPa

Model	OGM-25	OGM-40
Dimension	40×23×31mm	49×28×22mm
Net Weight	8kg	10kg
Gross Weight	9kg	11kg
Package	4pc/Carton	2pc/Carton
