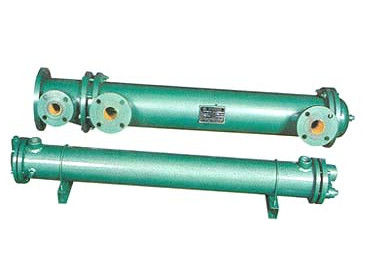

GLC、GLL series tubular oil cooler GLC4-27

Product Details:

Place of Origin:	China
Brand Name:	Saar
Model Number:	GLC4-27 GLC、GLL series tubular oil cooler

Contact Now

Detailed Product Description

Welcome to "Saar Hydraulic", your one-stop hydraulics components resource. Our experienced team has a wealth of experience in supplying hydraulic pumps, valves,cylinders,filters,filter elements,Oil coolers.

GLC series pipeline oil cooler Product Description

GLC series pipeline oil cooler is a new and high-efficiency cooler developed according to foreign information. It is suitable for hydraulic lubrication systems of metallurgical industry, mine industry, chemical industry, electric power industry, machine tool industry, light industry, plastic industry and so on and it can cool the working medium to specified temperature.

GLC series cooler consists of shell, front cover, rear cover, cooling core and so on. Cooling core consists of heat exchange tube, fixed tube sheet, floated tube sheet, baffle, and strut bar. Heat exchange tube adopts red copper finned tube, one end fixed, another end floated, thus structure failures caused by thermal expansion are avoided effectively. Cooling tube can be drawn from the shell and is convenient for examination, cleaning and maintainance.

The cooler holds merits of small in size, light weight, novel structure, remarkable heat exchange effect and so on. Its performance reaches the level of the same products abroad.

Tubular oil cooler is used in thin oil lubrication system and hydraulic system for metallurgy, mining, electric power, light industry, food and other industrial sectors, cooling the lubricating oil and hydraulic oil. This standard and JB/T7356-94 the same.

Nominal Pressure:0.63MPa,1.0MPa

Oil side pressure loss:≤0.1MPa

Water side pressure loss:≤0.05MPa

Oil inlet temperature:50℃

Water inlet temperature:≤30℃

Oil temperature drop:≥8℃

GLC series:Oil and water flow ratio1:1, Heat transfer coefficient＞300Kcal/m2·h·℃; Applicable medium viscosity 10~100cSt(40℃)

GLL series:Oil and water flow ratio1:1.5, Heat transfer coefficient＞200Kcal/m2·h·℃; Applicable medium viscosity 10~460cSt(40℃)

Water side of the channel:double hysterics type of the floating tube plate.

GLC,GLL series pipeline oil cooler Ordering Code:

GLC、GLL series tubular oil cooler GLC4-27

GLC series pipeline oil cooler Drawing:

GLC、GLL series tubular oil cooler GLC4-27

GLC,GLL Series Tubular Oil Cooler Specification

Model	L	C	L1	H1	H2	D1	D2	C1	C2	B	L2	L3	t	n-d3	d1	d2	kg
GLC1-0.4	407	240	88	60	68	78	92	52	102	132	125	166	2	4-φ11	G1	G 3/4	8
GLC1-0.6	572	405										331					10
GLC1-0.8	699	532										458					12
GLC1-1	832	665										591					13
GLC1-1.2	972	805										731					15
GLC2-1.3	560	375	102	85	93	120	137	78	145	175	172	225				G1	19
GLC2-1.7	685	500										350					21
GLC2-2.1	820	635										485					25
GLC2-2.6	960	775										625					29
GLC2-3	1110	925										775					32
GLC2-3.5	1270	1085										935					36
GLC3-4	847	570	158	125	158	168	238	110	170	210	245	380	10	4-φ15	G1 1/2	G1 1/4	74
GLC3-5	997	720	158	125	158	168	238	110	170	210	245	530					77
GLC3-6	1147	870										680					85
GLC3-7	1317	1040										850					90
GLC3-8	1477	1200										1010			G2	G1 1/2	96
GLC3-9	1637	1360										1170					105
GLC3-10	1807	1530										1340					110
GLC3-11	1987	1710										1520					118
GLC4-13	1340	985	197	160	208	219	305	140	270	320	318	745	12	4-φ19	G2	G2	152
GLC4-15	1500	1145										905					164
GLC4-17	1660	1305										1065					175
GLC4-19	1830	1475										1235					188
GLC4-21	2010	1655										1415					200
GLC4-23	2180	1825										1585					213
GLC4-25	2360	2005										1765					225
GLC4-27	2530	2175										1935					238
GLC5-30	1932	1570	202	200	234	273	355	180	280	320	327	1320		4-φ23		G2 1/2	-
GLC5-34	2152	1790										1540					-
GLC5-37	2322	1960										1710					-
GLC5-41	2542	2180										1930					-
GLC5-44	2712	2350										2100					-
GLC5-47	2872	2510										2260					-
GLC5-51	3092	2730										2480					-
GLC5-54	3262	2900										2650					-
GLC6-55	2272	1860	227	230	284	325	410	200	300	390	362	1590	12	4-φ23	G2 1/2	G3	-
GLC6-60	2452	2040										1770					-
GLC6-65	2632	2220										1950					-
GLC6-70	2812	2400										2130					-
GLC6-75	2992	2580										2310					-
GLC6-80	3172	2760										2490					-
GLC6-85	3352	2940										2670					-
GLC6-90	3532	3120										2850

Model	L	C	L1	H1	H2	D1	D2	C1	C2	B	L2	L3	D3	d4	n-d1	n-d2	n-bx1	DN1	DN2	kg
GLL3-4	1165	682	265	190	210	219	310	140	200	290	367	485	100	100	4-φ18	4-φ18	4-20×28	32	32	143
GLL3-5	1465	982										785								168
GLL3-6	1765	1282										1085	110					40		184
GLL3-7	2065	1582										1385								220
GLL4-12	1555	960	345	262	262	325	435	200	300	370	497	660	145	145				65	65	319
GLL4-16	1960	1365										1065								380
GLL4-20	2370	1775										1475								440
GLL4-24	2780	2175	250									1885	160		8-φ17.5			80		505
GLL4-28	3190	2585										2295								566
GLL5-35	2480	1692	500	315	313	426	535	235	300	520	730	1232	180	180		8-φ18	4-20×30	100	100	698
GLL5-40	2750	1962										1502								766
GLL5-45	3020	2202	515								725	1772	210					125		817
GLL5-50	3290	2472										2042								900
GLL5-60	3830	3012										2582								1027
GLL6-80	3160	2015	700	500	434	616	780	360	750	550	935	1555	295	295	8-φ22	8-φ23	4-25×32	200	200	1617
GLL6-100	3760	2615										2155								1890
GLL6-120	4360	3215										2755								2163
