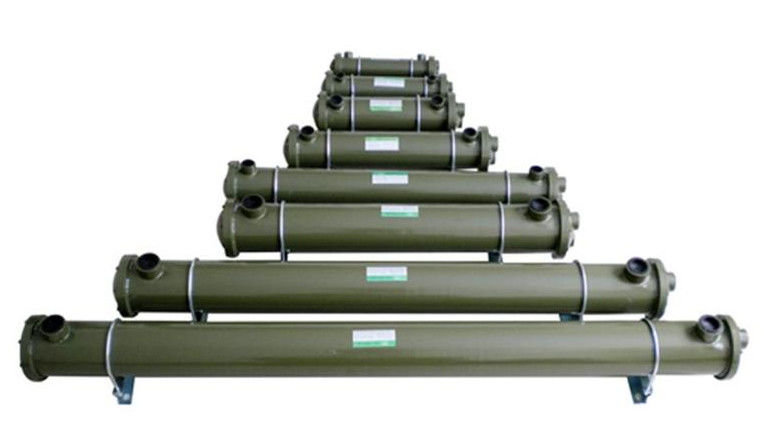

Name: Oil Cooler OR Series Tube Cooler OR-1200
Brand: Saar HK Electronic Limited
SKU: OR-1200 Oil Cooler OR Series Tube Cooler
Availability: InStock

Home Products Fans & Cooling

Oil Cooler OR Series Tube Cooler OR-1200

Product Details:

Place of Origin:	China
Brand Name:	Saar
Model Number:	OR-1200 Oil Cooler OR Series Tube Cooler

Contact Now

Detailed Product Description

Welcome to "Saar Hydraulic", your one-stop hydraulics components resource. Our experienced team has a wealth of experience in supplying hydraulic pumps, valves,cylinders,filters,filter elements,Oil coolers.

Oil Cooler OR Series Specifications

Oil cooler OR tube Type 1.High technology 2.High quality 3.100% tested, one year warranty
Tube heat exchanger

Oil Cooler OR tube Type hydraulic oil cooler
OR tube Type Oil Cooler that are fabricated using quality raw material. These high efficient coolers are widely used in fresh water ,seawater .cooling applications. Main cooling material is pure copper tube, only used for fresh water. Max. working pressure for oil port is 10kg/cm2, Max. working pressure for water port is 7kg/cm2.

tube heat exchangers
1,Flow:60~1200l/min
Tube heat exchanger,hydraulic oil radiator ,Oil cooler,Hydraulic oil cooler,oil coolers,plate heat exchanger

MODEL NO.	OIL PORTS	WATER PORTS	REFER FLOW RANGE(L/min)	WEIGHT (kg)
OR-60	PT3/4″	PT3/4″	60	8.5
OR-100	PT3/4″	PT3/4″	100	11.1
OR-150	PT1 1/4″	PT1″	150	19
OR-250	PT1 1/4″	PT1″	250	24
OR-350	PT1 1/4″	PT1″	350	32.5
OR-600	PT2″	PT1 1/4″	600	40
OR-800	PT2″	PT1 1/4″	800	54
OR-1000	PT2″	PT1 1/4″	1000	62
OR-1200	PT2″	PT1 1/4″	1200	72
