RLF RETURN LINE FILTER SERIES RLF-60×20P

Product Details:

Place of Origin:	China
Brand Name:	Saar
Model Number:	RLF-60×20P RETURN LINE FILTER SERIES

Contact Now

Detailed Product Description

Welcome to "Saar Hydraulic", your one-stop hydraulics components resource. Our experienced team has a wealth of experience in supplying hydraulic pumps, valves,cylinders,filters,filter elements.

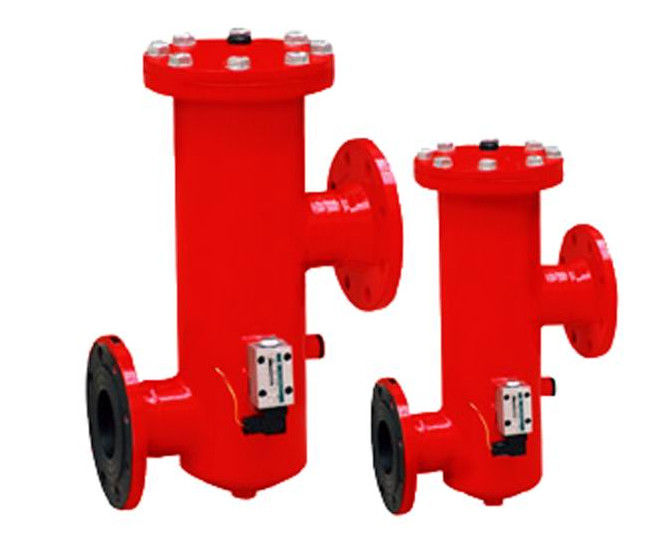

RLF RETURN LINE FILTER SERIES

RLF series filter is used in return line, it can remove all the contaminants from the hydraulic system, and allow clean oil flow back to the tank.. the elelment of this series is made of glass fibre, it has effiency and filtration, large dirt capacity and lower initial pressure drop. There is a by-pass vavle and a contamination indicator. The indicator will act when pressure drop across filter element attains 0.35Mpa, the element should be changed in time. If the syetemcan not be stopped or nobaby replaces the element, the by-pass vavle will open to protect the hydraulic syetem safty.

RLF RETURN LINE FILTER SERIES RLF-60×20P

Product Specification:

Model	DIA .(mm)	Flow (L/min)	Filter .(μm)	Pressure (MPa)	Pressure (MPa)		Indicator power (V/W)	By-Pass valve setting (MPa)	Weight(kg)	Model of Element
					Initial	Max
RLF-60×P	25	60	1 3 5 10 20 30	1.6	0.2	0.35	24/48 220/50	0.4	3.7	SFX-60×
RLF-110×P		110							4.2	SFX-110×
RLF-160×P	40	160							6.8	SFX-160×
RLF-240×P		240							7.5	SFX-240×
RLF-330×P	50	330							10.2	SFX-330×
RLF-500×P		500							11.3	SFX-500×
RLF-660×P	80	660							24.4	SFX-660×
RLF-850×P		850							26	SFX-850×
RLF-950×P	100	950							34.1	SFX-950×
RLF-1300×P		1300							38.8	SFX-1300×

Common filter list:

RLF-160×20P	RLF-110x10P
RLF-60×1P	RLF-110x1P
RLF-60×3P	RLF-110x20P
RLF-60×5P	RLF-110x30P
RLF-60×10P	RLF-110x3P
RLF-60×20P	RLF-110x5P
RLF-60×30P	RLF-1300x10P
RLF-110×1P	RLF-1300x1P
RLF-110×3P	RLF-1300x20P
RLF-110×5P	RLF-1300x30P
RLF-110×10P	RLF-1300x3P
RLF-110×20P	RLF-1300x5P
RLF-110×30P	RLF-160x10P
RLF-160×1P	RLF-160x1P
RLF-160×3P	RLF-160x20P
RLF-160×5P	RLF-160x20P
RLF-160×10P	RLF-160x30P
RLF-160×20P	RLF-160x3P
RLF-160×30P	RLF-160x5P
RLF-240×1P	RLF-240x10P
RLF-240×3P	RLF-240x1P
RLF-240×5P	RLF-240x20P
RLF-240×10P	RLF-240x30P
RLF-240×20P	RLF-240x3P
RLF-240×30P	RLF-240x5P
RLF-330×1P	RLF-330x10P
RLF-330×3P	RLF-330x1P
RLF-330×5P	RLF-330x20P
RLF-330×10P	RLF-330x30P
RLF-330×20P	RLF-330x3P
RLF-330×30P	RLF-330x5P
RLF-500×1P	RLF-500x10P
RLF-500×3P	RLF-500x1P
RLF-500×5P	RLF-500x20P
RLF-500×10P	RLF-500x30P
RLF-500×20P	RLF-500x3P
RLF-500×30P	RLF-500x5P
RLF-660×1P	RLF-60x10P
RLF-660×3P	RLF-60x1P
RLF-660×5P	RLF-60x20P
RLF-660×10P	RLF-60x30P
RLF-660×20P	RLF-60x3P
RLF-660×30P	RLF-60x5P
RLF-850×1P	RLF-660x10P
RLF-850×3P	RLF-660x1P
RLF-850×5P	RLF-660x20P
RLF-850×10P	RLF-660x30P
RLF-850×20P	RLF-660x3P
RLF-850×30P	RLF-660x5P
RLF-950×1P	RLF-850x10P
RLF-950×3P	RLF-850x1P
RLF-950×5P	RLF-850x20P
RLF-950×10P	RLF-850x30P
RLF-950×20P	RLF-850x3P
RLF-950×30P	RLF-850x5P
RLF-1300×1P	RLF-950x10P
RLF-1300×3P	RLF-950x1P
RLF-1300×5P	RLF-950x20P
RLF-1300×10P	RLF-950x30P
RLF-1300×20P	RLF-950x3P
RLF-1300×30P	RLF-950x5P
