RLF RETURN LINE FILTER SERIES RLF-60×*P

Product Details:

Place of Origin:	China
Brand Name:	Saar
Model Number:	RLF-60×*P RETURN LINE FILTER SERIES

Contact Now

Detailed Product Description

Welcome to "Saar Hydraulic", your one-stop hydraulics components resource. Our experienced team has a wealth of experience in supplying hydraulic pumps, valves,cylinders,filters,filter elements.

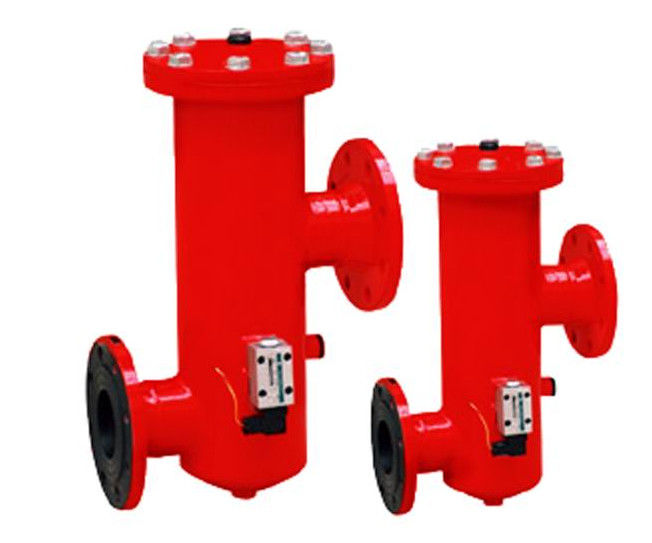

RLF RETURN LINE FILTER SERIES

RLF series filter is used in return line, it can remove all the contaminants from the hydraulic system, and allow clean oil flow back to the tank.. the elelment of this series is made of glass fibre, it has effiency and filtration, large dirt capacity and lower initial pressure drop. There is a by-pass vavle and a contamination indicator. The indicator will act when pressure drop across filter element attains 0.35Mpa, the element should be changed in time. If the syetemcan not be stopped or nobaby replaces the element, the by-pass vavle will open to protect the hydraulic syetem safty.

RLF RETURN LINE FILTER SERIES RLF-60×*P

Product Specification:

Model	DIA .(mm)	Flow (L/min)	Filter .(μm)	Pressure (MPa)	Pressure (MPa)		Indicator power (V/W)	By-Pass valve setting (MPa)	Weight(kg)	Model of Element
					Initial	Max
RLF-60×P	25	60	1 3 5 10 20 30	1.6	0.2	0.35	24/48 220/50	0.4	3.7	SFX-60×
RLF-110×P		110							4.2	SFX-110×
RLF-160×P	40	160							6.8	SFX-160×
RLF-240×P		240							7.5	SFX-240×
RLF-330×P	50	330							10.2	SFX-330×
RLF-500×P		500							11.3	SFX-500×
RLF-660×P	80	660							24.4	SFX-660×
RLF-850×P		850							26	SFX-850×
RLF-950×P	100	950							34.1	SFX-950×
RLF-1300×P		1300							38.8	SFX-1300×
