| Place of Origin: | China |
| Brand Name: | Saar |

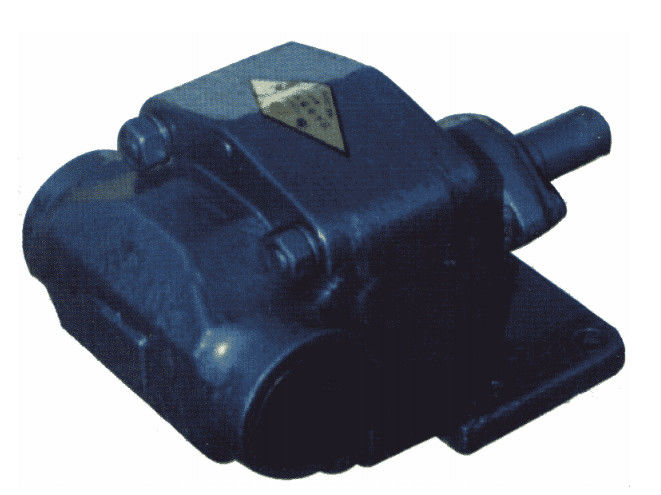

| Model Number: | BCB-160/1.6 Gear Oil Pump |
1. Introduction:
1. BCB industrial rotary oil gear pump is with compacted structure, stable revolving, high efficiency and long service life.
2. It works as a booster pump in fuel transfer system, a transmission, booster or an injection pump in fuel system, and a lubricating pump in all industries.
3. Suitable for the transportation of lube or liquid that is similar in nature.
4. The limitation of the liquid is that it should be without solid particle and fiber, non-corrosive, below 150°C (302°F) and viscosity between 5~1500c.s.t.
2. Product details:
| Working Principle: | Double Gears |
| Main applications: | Oil |
| Power Specs: | 380/415V 3phase; 50hz/60hz |
| Max.permissible fluid temperature: | 150°C(302°F) |
| Type of connection: | Flange, Thread, Quick Coupled. |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Free passage: | 00 mm |
| Maximum viscosity: | 1.5X103C.S.T |
| Maximum drive rating: | 7.5KW(10HP) |
| Maximum caliber: | 50mm(2inch) |
| Maximum discharge-side pressure: | 1.6MPa(16bar) |
| Flow rate range: | 10-250L/min(2.6-66US.GPM) |
3. Performance data:
| Model | Capacity | Pressure | Suction | Caliber | Motor | |||
| (L/min) | (m3/h) | (MPa) | (m) | (Inch) | Speed (r/min) | Power (KW) | Model | |
| BCB-10/1.6 | 10 | 0.6 | 1.6 | 5 | G3/8" | 1390 | 0.55 | Y80M1-4 |
| BCB-16/1.6 | 16 | 0.96 | 1.6 | 5 | G3/4" | 1390 | 0.75 | Y80M2-4 |
| BCB-20/1.6 | 20 | 1.2 | 1.6 | 5 | G3/4" | 1400 | 1.1 | Y90S-4 |
| BCB-25/1.6 | 25 | 1.5 | 1.6 | 5 | G3/4" | 1400 | 1.1 | Y90S-4 |
| BCB-32/1.6 | 32 | 2 | 1.6 | 5 | G1" | 1400 | 1.5 | Y90L-4 |
| BCB-40/1.6 | 40 | 2.4 | 1.6 | 5 | G1" | 1420 | 2.2 | Y100L1-4 |
| BCB-50/1.6 | 50 | 3 | 1.6 | 5 | G1" | 1420 | 2.2 | Y100L1-4 |
| BCB-63/1.6 | 63 | 3.8 | 1.6 | 5 | G1" | 1420 | 3 | Y100L2-4 |
| BCB-80/1.6 | 80 | 4.8 | 1.6 | 5 | G1 1/2" | 1420 | 3 | Y100L2-4 |
| BCB-100/1.6 | 100 | 6 | 1.6 | 5 | G1 1/2" | 1440 | 4 | Y112M-4 |
| BCB-125/1.6 | 125 | 7.5 | 1.6 | 5 | G1 1/2" | 1440 | 5.5 | Y132S-4 |
| BCB-160/1.6 | 160 | 9.6 | 1.6 | 4.5 | G2" | 1440 | 5.5 | Y132S-4 |
| BCB-200/1.6 | 200 | 12 | 1.6 | 4.5 | G2" | 1440 | 7.5 | Y132S-4 |
| BCB-250/1.6 | 250 | 15 | 1.6 | 4.5 | G2" | 1440 | 7.5 | Y132S-4 |
