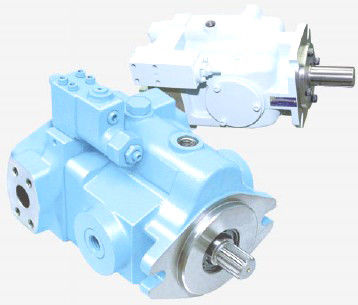

Name: Denison PVT10-2R1D-J04-S00 PVT Series Variable Displacement Piston Pump
Brand: Saar HK Electronic Limited
SKU: PVT10-2R1D-J04-S00
Availability: InStock

Home Products Piston Pumps

Denison PVT10-2R1D-J04-S00 PVT Series Variable Displacement Piston Pump

Product Details:

Place of Origin:	US
Brand Name:	Denison
Model Number:	PVT10-2R1D-J04-S00

Contact Now

Detailed Product Description

General

The PV/PVT series pumps are variable displacement open circuit piston pumps with a design emphasis on operation economy. These axial piston pumps for open loop operation are suitable for rear drive in the PVT series configuration.

The PV/PVT pumps have a displacement of 0.88 to 7.93 cu. in/rev. (14,4 to 130,0 cc/rev.) with a continuous working pressure up to 4000 psi (280 bar): The pumps can be equipped with a pressure compensator, ventable compensator, load sensing or power limit control.

Features

1 maximum volume adjustment

2 fast compensator response- 50 ms. off-stroke, 120 ms on-stroke. Other controls available- ventable compensator, load sensing and power limiter

3 port plate- replaceable

4 smoother power and quieter operation- with nine-piston rotating group

5 adjustable compensator

6 key and spline conform to industry standard

7 SAE mounting- easily interchangeable with other SAE mounted pumps

Benefits

· quiet operation- improves working conditions, low noise levels

· contamination tolerances- improves dependability and

·more power- because of the PV’s high pressure ratings.

· system savings- because higher pressure allows use of

· versatility- full power through drive to allow multiple pumps smaller components...you can “downsize” and gain real

· convenience- side or rear port options for ease and

· high productivity- because of unique efficiency.

· greater safety- you can use fire resistant hydraulic fluids

· simple construction- for long, dependable service.

· tailor the flow- to your needs with the standard maximum

· interchangeable- with other SAE mounted

For more technical informatioin, please download the below datasheet:

Denison PVT Series Variable Displacement Piston Pump

The stock pump list:

PVT10-1L1C-L03-AA0	PVT15-5R1C-K03-S00
PVT10-1L1C-L03-S00	PVT15-5R1C-L03-S00
PVT10-1L1D-C03-AA0	PVT15-5R1D-F03-S00
PVT10-1R1C-C03-AA0	PVT15-5R1D-L03-S00
PVT10-1R1D-F03-S00	PVT20-1L1C-L03-S00
PVT10-1R1D-L03-AA0	PVT20-1L1D-C03-BB0
PVT10-1R1D-L03-S00	PVT20-1L1D-K03-S00
PVT10-2L1C-C03-S00	PVT20-1L1D-L03-AA0
PVT10-2L1D-C03-AB0	PVT20-1L1D-L03-S00
PVT10-2L1D-C03-BB0	PVT20-1R1C-L03-S00
PVT10-2L1D-C03-S00	PVT20-1R1D-C03-BB0
PVT10-2L1D-F03-S00	PVT20-1R1D-K03-S00
PVT10-2R1C-C03-S00	PVT20-1R1D-L03-AA0
PVT10-2R1C-L03-S00	PVT20-1R1D-L03-BB0
PVT10-2R1D-C02-000	PVT20-1R1D-L03-CC0
PVT10-2R1D-C03-AA0	PVT20-1R1D-L03-S00
PVT10-2R1D-C03-AB0	PVT20-2L1C-J03-S00
PVT10-2R1D-C03-BB0	PVT20-2L1C-K03-S00
PVT10-2R1D-C03-S00	PVT20-2L1D-C03-S00
PVT10-2R1D-F03-BB0	PVT20-2L1D-F03-AA0
PVT10-2R1D-F03-S00	PVT20-2L1D-J03-S00
PVT10-2R1D-J04-S00	PVT20-2R1C-C03-S00
PVT10-2R1D-L03-AA0	PVT20-2R1C-K03-S00
PVT10-2R1D-L03-S00	PVT20-2R1C-L03-S00
PVT10-2R5D-J04-BB0	PVT20-2R1D-C02-000
PVT10-2R5D-J04-S00	PVT20-2R1D-C03-AA0
PVT15-1L1C-C03-S00	PVT20-2R1D-C03-BB0
PVT15-1L1C-L03-AA0	PVT20-2R1D-C03-S00
PVT15-1L1C-L03-BB0	PVT20-2R1D-F04-S00
PVT15-1L1D-C03-AA0	PVT20-2R1D-L03-AA0
PVT15-1L1D-C03-BB0	PVT20-2R1D-L03-BB0
PVT15-1L1D-C03-S00	PVT20-2R1D-L03-S00
PVT15-1L1D-F03-S00	PVT29-1L1C-C03-AA0
PVT15-1L1D-L03-AA0	PVT29-1L1C-C03-BB0
PVT15-1L1D-L03-BB0	PVT29-1L1C-C03-S00
PVT15-1L1D-L03-S00	PVT29-1L1C-L03-AA0
PVT15-1R1C-C03-AA0	PVT29-1L1C-L03-CC0
PVT15-1R1D-C03-AA0	PVT29-1L1C-L03-S00
PVT15-1R1D-F03-S00	PVT29-1L1D-C03-BB0
PVT15-1R1D-L03-AA0	PVT29-1L1D-C03-CC0
PVT15-1R1D-L03-BB0	PVT29-1L1D-C03-S00
PVT15-1R1D-L03-S00	PVT29-1L1D-K03-BB0
PVT15-2L1C-C03-S00	PVT29-1L1D-L03-AA0
PVT15-2L1D-C03-AA0	PVT29-2R1D-C02-000
PVT15-2L1D-C03-BB0	PVT38-2R1D-C02-000
PVT15-2L1D-F03-S00	PVT38-2R5C-C03-S00
PVT15-2R1D-C02-000	PVT47-2R1D-C02-000
PVT15-2R1D-C03-AA0	PVT6-1L1C-C03-S00
PVT15-2R1D-C03-BB0	PVT6-1L1C-K03-S00
PVT15-2R1D-C03-S00	PVT6-1L1D-C03-S00
PVT15-2R1D-F03-AA0	PVT6-1R1C-L03-AB0
PVT15-2R1D-F03-AB0	PVT6-1R1D-C04-AA0
PVT15-2R1D-F03-S00	PVT6-1R1D-F03-AB0
PVT15-2R1D-L03-AA0	PVT6-1R1D-J04-AB0
PVT15-2R1D-L03-AB0	PVT6-2L1C-C03-AA0
PVT15-2R1D-L03-BB0	PVT6-2L1C-C03-S00
PVT15-4L1C-C03-AA0	PVT6-2L1C-J03-S00
PVT15-4L1C-L03-AA0	PVT6-2L1C-L03-AA0
PVT15-4L1C-L03-S00	PVT6-2R1C-C03-S00
PVT15-4L1D-C03-S00	PVT6-2R1C-F03-AA0
PVT15-4L1D-L03-S00	PVT6-2R1C-J03-S00
PVT15-4R1C-C03-AA0	PVT6-2R1C-K03-AA0
PVT15-4R1D-C03-AA0	PVT6-2R1C-K04-AA0
PVT15-4R1D-C03-S00	PVT6-2R1C-L03-AA0
PVT15-4R1D-L03-BB0	PVT6-2R1C-L03-AB0
PVT15-4R1D-L03-S00	PVT6-2R1D-C02-000
PVT15-5L1C-K03-AA0	PVT6-2R1D-C03-AA0
PVT15-5L1C-K03-S00	PVT6-2R1D-C03-S00
PVT15-5L1C-L03-BB0	PVT6-2R1D-F03-AA0
PVT15-5L1C-L03-S00	PVT6-2R1D-F03-S00
PVT15-5L1D-F03-S00	PVT6-2R1D-L03-AA0
PVT15-5L1D-L03-BB0	PVT6-2R1D-L03-S00
PVT15-5R1C-F03-AA0	PVT6-2R5D-C03-S00
PVT15-5R1C-J03-S00	PVT64-2R1D-C02-000
