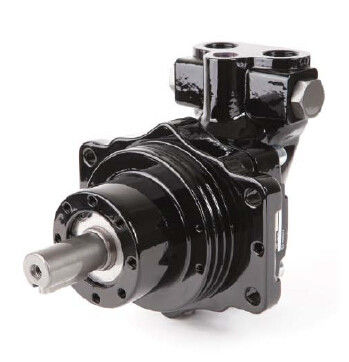

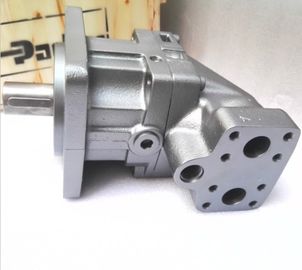

Name: Parker F12-030-RF-IH-K-000-000-0 Fixed Displacement Motor/Pump
Brand: Saar HK Electronic Limited
SKU: Parker F11/F12 Series Motor/Pump F12-030-RF-IH-K-000-000-0
Availability: InStock

Home Products Piston Pumps

Parker F12-030-RF-IH-K-000-000-0 Fixed Displacement Motor/Pump

Product Details:

Place of Origin:	SWEDEN/US
Brand Name:	Parker
Model Number:	Parker F11/F12 Series Motor/Pump F12-030-RF-IH-K-000-000-0

Contact Now

Detailed Product Description

Parker F11/F12 Series Fixed Displacement Motor/Pump

Saw motor versions

The saw motor is available in eight sizes, 6, 10, 12, 14,

19, 30, 40 and 60 cm3/rev. Motors between 10 to 30

cm3/rev are equiped with an integrated, large capacity

make-up (anti-cavitation) valve. The valve reduces the

risk of cavitation when the pump supply is suddenly

shut off while the motor is still running at high speed. A

counter-pressure of around 10 bar (measured in port B

in the exemplified schematic below) is recommended.

The make-up valve makes the motor directional; when

ordering, either R (right hand/clockwise) or L (left hand/

counter clockwise) rotation must be specified.

When ordering a motor with make up valve, it is to be

specified in product code. Ex below.

F12-030-SF-WS-X-284-MUVL-B0

Benefits

• Simple installation - lower cost

• Sturdier saw bar support

• Lower overall weight

• Much more compact installation

• Same mounting flange installation

dimensions for all sizes

Parker F11/F12 Series Fixed Displacement Motor/Pump Ordering Code:

Parker F12 Series Fixed Displacement Motor/Pump Model List:

3799835	F12-030-LF-IH-D-000-000-0
3799836	F12-030-LF-IH-K-000-000-0
3785844	F12-030-LF-IV-K-000-000-0
3782080	F12-030-LF-IV-Z-000-000-0
3799837	F12-030-LS-SH-S-000-000-0
3799838	F12-030-LS-SH-T-000-000-0
3785599	F12-030-LS-TH-P-000-000-0
3780368	F12-030-LS-TH-S-000-000-0
3783228	F12-030-LS-TH-T-000-000-0
3781934	F12-030-LS-TV-S-000-000-0
3785812	F12-030-LU-SH-S-000-000-0
3799840	F12-030-MF-CH-C-000-000-0
3782082	F12-030-MF-CH-C-000-000-P
3780257	F12-030-MF-CH-C-000-000-S
3799832	F12-030-MF-CH-C-000-L01-0
3799866	F12-030-MF-CH-C-235-000-0
3780571	F12-030-MF-CH-K-000-000-0
3781717	F12-030-MF-CH-K-000-000-P
3781185	F12-030-MF-CH-K-000-000-S
3799870	F12-030-MF-CN-C-235-000-0
3799841	F12-030-MF-CV-C-000-000-0
3783525	F12-030-MF-CV-C-000-000-S
3799833	F12-030-MF-CV-C-000-L01-0
3781982	F12-030-MF-CV-C-000-L01-S
3799842	F12-030-MF-IE-D-000-000-0
3785437	F12-030-MF-IE-K-000-L02-0
3799843	F12-030-MF-IH-D-000-000-0
3799963	F12-030-MF-IH-D-000-000-S
3780552	F12-030-MF-IH-D-000-L01-0
3799844	F12-030-MF-IH-K-000-000-0
3785055	F12-030-MF-IH-K-000-000-P
3780834	F12-030-MF-IH-K-000-000-S
3799834	F12-030-MF-IH-K-000-L01-0
3782034	F12-030-MF-IH-K-000-L01-P
3781953	F12-030-MF-IH-K-000-L01-S
3786130	F12-030-MF-IH-K-209-L01-P
3780596	F12-030-MF-IH-K-237-000-0
3781961	F12-030-MF-IH-K-239-000-0
3799845	F12-030-MF-IH-P-000-000-0
3782840	F12-030-MF-IH-P-000-000-P
3785551	F12-030-MF-IH-P-317-000-0
3799846	F12-030-MF-IH-Z-000-000-0
3799847	F12-030-MF-IV-D-000-000-0
3782397	F12-030-MF-IV-D-000-L01-0
3799848	F12-030-MF-IV-K-000-000-0
3785923	F12-030-MF-IV-K-000-000-P
3783045	F12-030-MF-IV-K-000-000-S
3785013	F12-030-MF-IV-K-000-L01-0
3782195	F12-030-MF-IV-K-000-L01-P
3785568	F12-030-MF-IV-K-000-L01-S
3785440	F12-030-MF-IV-K-000-L02-0
3782138	F12-030-MF-IV-P-000-000-0
3786254	F12-030-MR-CH-K-000-000-0
3786275	F12-030-MR-SH-T-000-000-0
3799850	F12-030-MS-SE-S-000-000-0
3781614	F12-030-MS-SE-S-289-000-0
3783328	F12-030-MS-SH-D-000-000-0
3799851	F12-030-MS-SH-S-000-000-0
3785041	F12-030-MS-SH-S-000-000-S
3783124	F12-030-MS-SH-S-000-L01-0
3785206	F12-030-MS-SH-S-000-L01-S
3786281	F12-030-MS-SH-S-000-L07-P
3781604	F12-030-MS-SH-S-000-L08-0
3799852	F12-030-MS-SH-T-000-000-0
3783327	F12-030-MS-SH-T-000-000-S
3782799	F12-030-MS-SH-T-000-L01-P
3782591	F12-030-MS-SH-T-000-L01-S
3782145	F12-030-MS-SH-T-000-L02-S
3780527	F12-030-MS-SH-T-000-L08-0
3799853	F12-030-MS-SN-S-000-000-0
3799854	F12-030-MS-SN-T-000-000-0
3799855	F12-030-MS-SV-S-000-000-0
3780273	F12-030-MS-SV-S-000-L01-0
3780182	F12-030-MS-SV-S-239-000-0
3799856	F12-030-MS-SV-T-000-000-0
3782560	F12-030-MS-SV-T-000-000-P
3781956	F12-030-MS-SV-T-000-000-S
3782640	F12-030-MS-SV-T-000-L01-0
3782122	F12-030-MS-SV-T-000-L08-S
3782592	F12-030-MS-TH-K-000-000-0
3780448	F12-030-MS-TH-P-000-000-0
3799616	F12-030-MS-TH-S-000-000-0
3785483	F12-030-MS-TH-S-000-L01-0
3782729	F12-030-MS-TH-S-000-L01-P
3785047	F12-030-MS-TH-S-000-L08-0
3799828	F12-030-MS-TH-T-000-000-0
3781703	F12-030-MS-TH-T-000-000-S
3780380	F12-030-MS-TN-S-000-000-0
3799747	F12-030-MS-TN-T-000-000-0
3780141	F12-030-MS-TV-S-000-000-0
3782405	F12-030-MS-TV-S-000-000-S
3785742	F12-030-MU-SV-T-000-000-0
3781898	F12-030-MU-TH-S-000-000-0
3781123	F12-030-MU-TH-T-000-000-0
3786343	F12-030-MU-TH-T-000-000-P
3785749	F12-030-MU-TH-T-000-000-S
3786078	F12-030-MU-TV-P-000-000-0
3785042	F12-030-MU-TV-T-000-000-0
3799858	F12-030-RF-IH-D-000-000-0
3799859	F12-030-RF-IH-K-000-000-0
3782058	F12-030-RF-IH-P-000-000-0
3783248	F12-030-RF-IN-K-000-000-0
3785814	F12-030-RF-IV-D-000-000-0
3782300	F12-030-RF-IV-K-000-000-0
3782123	F12-030-RF-IV-Z-000-000-0
3799860	F12-030-RS-SH-S-000-000-0
3799861	F12-030-RS-SH-T-000-000-0
3782651	F12-030-RS-SV-S-000-000-0
3781407	F12-030-RS-TH-S-000-000-0
3780112	F12-030-RS-TH-T-000-000-0
3785891	F12-030-RU-TH-S-000-000-0
3785654	F12-030-RU-TV-T-000-000-0
3785543	F12-030-XF-CV-K-291-000-0
3785614	F12-030-XF-CV-P-316-000-0
3782468	F12-030-XS-SH-S-291-000-0
3782479	F12-030-XS-SH-T-267-000-0
3785842	F12-030-XS-SV-T-291-000-0
3799516	F12-040-LF-IH-K-000-000-0
3781294	F12-040-LF-IN-K-000-000-0
3783376	F12-040-LF-IV-K-000-000-0
3799517	F12-040-LS-SH-S-000-000-0
3799518	F12-040-LS-SH-T-000-000-0
3780950	F12-040-LS-TH-S-000-000-0
3782675	F12-040-LS-TH-T-000-000-0
3799520	F12-040-MF-CH-C-000-000-0
3782743	F12-040-MF-CH-C-000-000-P
3782446	F12-040-MF-CH-C-000-L01-0
3799545	F12-040-MF-CH-C-244-000-0
3780206	F12-040-MF-CH-C-248-000-0
3781978	F12-040-MF-CH-C-248-000-S
3782387	F12-040-MF-CH-C-294-000-0
3782313	F12-040-MF-CH-C-294-000-S
3781029	F12-040-MF-CH-X-264-000-0
3783054	F12-040-MF-CH-X-300-000-0
3799521	F12-040-MF-CV-C-000-000-0
3783434	F12-040-MF-CV-X-264-L01-0
3799522	F12-040-MF-IE-D-000-000-0
3799523	F12-040-MF-IE-K-000-000-0
3785583	F12-040-MF-IE-K-000-L01-0
3799525	F12-040-MF-IH-D-000-000-0
3799966	F12-040-MF-IH-D-000-000-S
3799509	F12-040-MF-IH-D-000-L01-0
3783011	F12-040-MF-IH-D-000-L01-S
3781143	F12-040-MF-IH-D-000-L02-0
3799548	F12-040-MF-IH-D-239-000-0
3785899	F12-040-MF-IH-D-322-000-0
3799526	F12-040-MF-IH-K-000-000-0
3785048	F12-040-MF-IH-K-000-000-P
3780326	F12-040-MF-IH-K-000-000-S
3799510	F12-040-MF-IH-K-000-L01-0
3783004	F12-040-MF-IH-K-000-L01-P
3781290	F12-040-MF-IH-K-000-L01-S
3799527	F12-040-MF-IH-Z-000-000-0
3782983	F12-040-MF-IH-Z-000-L01-0
3799528	F12-040-MF-IN-K-000-000-0
3781137	F12-040-MF-IN-X-264-000-0
3799529	F12-040-MF-IV-D-000-000-0
3799511	F12-040-MF-IV-D-000-L01-0
3799530	F12-040-MF-IV-K-000-000-0
3782388	F12-040-MF-IV-K-000-L01-0
3785758	F12-040-MF-IV-K-000-L01-P
3783330	F12-040-MF-IV-Z-000-L07-0
3799531	F12-040-MS-SE-S-000-000-0
3781613	F12-040-MS-SE-S-289-000-0
3782635	F12-040-MS-SE-T-000-000-0
3799532	F12-040-MS-SH-S-000-000-0
3783160	F12-040-MS-SH-S-000-000-P
3782679	F12-040-MS-SH-S-000-000-S
3782805	F12-040-MS-SH-S-000-L01-0
3799512	F12-040-MS-SH-S-000-L04-0
3782265	F12-040-MS-SH-S-000-L06-0
3799513	F12-040-MS-SH-S-000-L08-0
3799533	F12-040-MS-SH-T-000-000-0
3782676	F12-040-MS-SH-T-000-000-S
3782573	F12-040-MS-SH-T-000-L01-P
3780555	F12-040-MS-SH-T-237-000-0
3799534	F12-040-MS-SN-S-000-000-0
3781831	F12-040-MS-SN-S-000-L01-0
3782088	F12-040-MS-SN-S-000-L06-0
3785950	F12-040-MS-SN-S-209-000-0
3799536	F12-040-MS-SV-S-000-000-0
3783192	F12-040-MS-SV-S-000-L06-0
3799514	F12-040-MS-SV-S-000-L08-0
3799537	F12-040-MS-SV-T-000-000-0
3785193	F12-040-MS-SV-T-000-000-S
3799617	F12-040-MS-TH-S-000-000-0
3799881	F12-040-MS-TH-T-000-000-0
3782319	F12-040-MS-TH-T-000-L01-0
3780115	F12-040-MS-TV-S-000-000-0
3785813	F12-040-MU-SH-S-000-000-0
3785872	F12-040-MU-SN-T-000-000-0
3785514	F12-040-MU-SV-T-000-000-0
3781403	F12-040-MU-TH-T-000-000-0
3785533	F12-040-MU-TV-T-000-000-0
3799538	F12-040-RF-IH-D-000-000-0
3799539	F12-040-RF-IH-K-000-000-0
3783244	F12-040-RF-IN-K-000-000-0
3782666	F12-040-RF-IV-K-000-000-0
3799541	F12-040-RS-SH-S-000-000-0
3799542	F12-040-RS-SH-T-000-000-0
