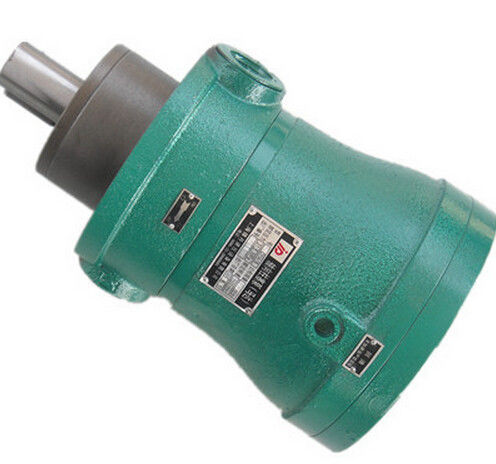

10MCM14-1B Series Axial Piston Motor

Product Details:

Place of Origin:	China
Brand Name:	SAAR
Model Number:	MCM14-1B Series Axial Piston Motor 10MCM14-1B

Contact Now

Detailed Product Description

MCM14-1B Series Axial Piston Motor

Quantitative swashplate axial piston motor MCM14-1B Features

Quantitative swashplate axial piston motor MCM14-1B is using oil distribution plate of oil distribution, block rotating axial plunger pump. Quantitative swashplate axial piston motor MCM14-1B due to sliding boots and variable between head, oil distribution plate and cylinder adopts the hydraulic structure of static equilibrium, and compared with other types of plunger pump, quantitative swashplate axial piston motor MCM14-1B has a simple structure, small volume, high efficiency, long life, light weight, strong self-priming capacity, etc.

Quantitative swashplate axial piston pump/motor MCM14-1B is suitable for the machine tool machine, suitable for forging machinery, applicable to the metallurgical machinery, is suitable for engineering machinery, suitable for mining machinery, is suitable for wind power machinery and other hydraulic transmission system. Quantitative inclined.

Quantitative swashplate axial piston motor MCM14-1B Use notice:

Quantitative swashplate axial piston motor MCM14-1B pump rotate to, according to clockwise rotate to () from the view of shaft end users need to counter clockwise rotate to or do motor, must when ordering.

Quantitative swashplate axial piston motor MCM14-1B and with elastic coupling between motor, and requires concentric, otherwise it will produce noise, lower efficiency and other failures.

Quantitative swashplate axial piston pump/motor MCM14-1B self-priming ability to a certain extent, can be installed in the fuel tank used above, height is not more than 0.5 M. But for the flow rate is greater than 160 l/min recommends to flow backward self-priming pump.

Quantitative swashplate axial piston pump/motor MCM14-1B in the first start, must through drainage hole to the pump housing

MCM14-1B Series Axial Piston Motor Drawing

MCM14-1B Series Axial Piston Motor Specification:

Model No#	Pressure MPA	Displacement ML/R	Flow L/MIN		Maximum transmission power KW		Theoretical maximum torque NM	Weight KG
Model No#	Pressure MPA	Displacement ML/R	1000R/MIN	1500R/MIN	1000R/MIN	1500R/MIN	Theoretical maximum torque NM	Weight KG
1.25MCM14-1B	31.5	1.25	1.25	1.88	0.7	1.1	6.3	6.9
2.5MCM14-1B	31.5	2.5	2.5	3.75	1.43	2.2	12.6	7.2
10MCM14-1B	31.5	10	10	15	6.2	9.3	56	16.4~26
13MCM14-1B	31.5	13	13	19.5	8	12	72	16.4~26
16MCM14-1B	31.5	16	16	24	9.9	14.8	89	16.4~26
25MCM14-1B	31.5	25	25	37.5	14.6	22	139	28.4~41
32MCM14-1B	31.5	32	32	48	18.7	28	178	28.4~41
40MCM14-1B	31.5	40	40	60	23.3	35	223	28.4~41
63MCM14-1B	31.5	63	63	94.5	36.8	55	352	56~74
80MCM14-1B	31.5	80	80	120	46.7	70	445	56~74
100MCM14-1B	31.5	100	100	150	58	87.5	557	80~110
125MCM14-1B	31.5	125	125	188	73	109	696	80~110
160MCM14-1B	31.5	160	160	240	93	140	891	138~168
250MCM14-1B	31.5	250	250	375	146	218	1392	200~232
400MCM14-1B	31.5	400	400		233		2228	200~232
