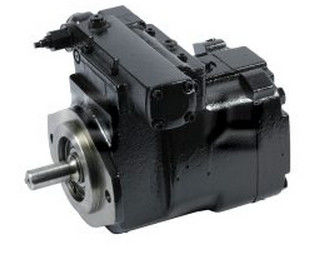

Oilgear PVWJ-076-A1UV-LDFY-P-1NN/FSN-AN/10 PVWJ Series Open Loop Pumps

Product Details:

Place of Origin:	USA
Brand Name:	Oilgear
Model Number:	PVWJ-076-A1UV-LDFY-P-1NN/FSN-AN/10

Contact Now

Detailed Product Description

Welcome to "Saar Hydraulic", your one-stop hydraulics components resource. Our experienced team has a wealth of experience in supplying hydraulic pumps, valves,cylinders,filters,filter elements.

OILGEAR TYPE “PVWJ” PUMPS - PVWJ-011/-014/-022/-025/-034/-046/-064/-076/-098/-130 SERVICE INSTRUCTIONS

PVWJ Pumps

Name: Oilgear PVWJ-076-A1UV-LDFY-P-1NN/FSN-AN/10 PVWJ Series Open Loop Pumps
Brand: Saar HK Electronic Limited
SKU: PVWJ-076-A1UV-LDFY-P-1NN/FSN-AN/10
Availability: InStock

"Smooth Operator"

PVWJ open loop, axial piston hydraulic pumps by Oilgear are uniquely designed for enhanced stability and less maintenance in low- to medium horsepower applications. Incorporating static seals (o-rings), the PVWJ family of pumps reduces control noise and features a more aesthetic design.

Available in three frame sizes and ten displacements, PVWJ pumps allow for greater flexibility to selectively match pressure and capacity. And, with a variety of optional controls, the PVWJ family of pumps provide easy field interchangeability.

PVWJ PUMP SIZE	THEORETICAL MAXIMUM DISPLACEMENT (in³/rev) (ml/rev)		RATED CONTINUOUS PRESSURE (psi)	PEAK PRESSURE (psi)
011	0.66	10,8	5000	5800
014	0.86	14,1	4000	4500
022	1.35	22,1	3000	3500
025	1.55	25,4	5000	5800
034	2.06	33,8	3500	4000
046	2.83	46,4	2500	3000
064	3.88	63,6	5000	5800
076	4.67	76,5	3500	4000
098	6.00	98,3	2500	3000
130	7.94	130,2	1500	2000

PVWJ Specifications

Nominal Dimensions
Click on Frame Size for Performance Specifications

Frame Size	Unit Size	Length		Width		Height		Weight		Face Mounting
		in.	mm	in.	mm	in.	mm	lbs	kg
A	11, 14, & 22	7.20	182,9	4.32	109,7	4.50	114,3	32	14,5	SAE "A" 2 Bolt
B	25, 34 46	8.50	215,9	5.80	147,3	6.11	155,2	68	30,9	SAE "B" 2 Bolt
C	64, 76, 98 & 130	10.44	265,2	6.76	171,7	7.18	182,4	103	46,8	SAE "C" 2 Bolt

Nominal Performance Specifications

Frame Size		A
Unit Size		11	14	22
Theoretical Maximum Displacement	in^3/rev	0.66	0.86	1.35
Theoretical Maximum Displacement	ml/rev	10,8	14,1	22,1
Rated Continuous Pressure	psi	5000	4000	3000
Rated Continuous Pressure	bar	344,8	275,9	206,9
Peak Pressure	psi	5800	4500	3500
Peak Pressure	bar	400,0	310,3	241,4
Flow Rate at 1800 RPM, rated continuous pressure & 14.7 psi (1.01 bar abs) inlet conditions	gpm	4.2	5.9	9.5
	l/min	15,9	22,4	36,0
Minimum Inlet Pressure psia (bar abs)	1200rpm	5.4 (0,39)	5.5 (0,38)	5.5 (0,38)
	1500rpm	5.7 (0,37)	5.9 (0,41)	6.0 (0,41)
	1800rpm	6.1 (0,42)	6.4 (0,44)	7.0 (0,48)
Maximum Speed	rpm	3000	3000	3000
Power Input at rated continuous pressure & 1800 rpm	hp	16.3	17.7	20.2
Power Input at rated continuous pressure & 1800 rpm	kW	12,2	13,2	15,1

Nominal Performance Specifications

Frame Size		B
Unit Size		25	34	46
Theoretical Maximum Displacement	in^3/rev	1.55	2.06	2.83
Theoretical Maximum Displacement	ml/rev	25,4	33,8	46,4
Rated Continuous Pressure	psi	5000	3500	2500
Rated Continuous Pressure	bar	344,8	241,1	172,4
Peak Pressure	psi	5800	4000	3000
Peak Pressure	bar	400,0	275,9	206,9
Flow Rate at 1800 RPM, rated continuous pressure & 14.7 psi (1.01 bar abs) inlet conditions	gpm	10.9	14.7	20.6
	l/min	41,3	55,7	78,1
Minimum Inlet Pressure psia (bar abs)	1200rpm	7.0 (0,48)	7.0 (0,48)	7.2 (0,50)
	1500rpm	7.3 (0,50)	7.6 (0,52)	7.9 (0,54)
	1800rpm	8.2 (0,57)	8.4 (0,58)	9.0 (0,62)
Maximum Speed	rpm	3000	3000	2400
Power Input at rated continuous pressure & 1800 rpm	hp	36.5	35.5	35.0
Power Input at rated continuous pressure & 1800 rpm	kW	27,2	26,5	26,1

Nominal Performance Specifications

Frame Size		C
Unit Size		64	76	98	130
Theoretical Maximum Displacement	in^3/rev	3.88	4.67	6.00	7.94
Theoretical Maximum Displacement	ml/rev	63,6	76,5	98,3	130,2
Rated Continuous Pressure	psi	5000	3500	2500	1500
Rated Continuous Pressure	bar	344,8	241,4	172,4	103,4
Peak Pressure	psi	5800	4000	3000	2000
Peak Pressure	bar	400,0	275,9	206,9	137,9
Flow Rate at 1800 RPM, rated continuous pressure & 14.7 psi (1.01 bar abs) inlet conditions	gpm	27.4	33.7	43.3	58.2
	l/min	103,8	127,7	164,1	220,3
Minimum Inlet Pressure psia (bar abs)	1200rpm	7.6 (0,52)	8.0 (0,55)	7.6 (0,52)	8.0 (0,55)
	1500rpm	8.5 (0,59)	8.6 (0,59)	8.6 (0.59)	9.3 (0,64)
	1800rpm	9.5 (0,66)	9.6 (0,66)	9.8 (0.68)	14.5 (1,00)
Maximum Speed	rpm	2400	2400	2400	1800
Power Input at rated continuous pressure & 1800 rpm	hp	95.1	80.4	74.1	64.0
Power Input at rated continuous pressure & 1800 rpm	kW	70,9	60,0	55,3	48,8

Common model no# available:

PVWJ-011-A1UV-LDFY-P-1NN/FSN-AN/10

PVWJ-011-A1UV-LDRY-P-1NN/FSN-AN/10

PVWJ-011-A1UV-LSAY-P-1NN/JNN

PVWJ-011-A1UV-LSFY-P-1NN/FSN-AN/10

PVWJ-011-A1UV-LSRY-P-1NN/FSN-AN/10

PVWJ-011-A1UV-RGAY-P-1NNSN

PVWJ-011-A1UV-RSAY-P-1NN/JNN

PVWJ-011-A1UV-RSAY-P-1NNN

PVWJ-011-AIUV-RGAY-P-1NNSN

PVWJ-014-A1UV-LDFY-P-1NN/FSN-AN/10

PVWJ-014-A1UV-LDRY-P-1NN/FSN-AN/10

PVWJ-014-A1UV-LSFY-P-1NN/FSN-AN/10

PVWJ-014-A1UV-LSRY-P-1NN/FSN-AN/10

PVWJ-022-A1UV-LDFY-P-1NN/FSN-AN/10

PVWJ-022-A1UV-LDRY-P-1NN/FSN-AN/10

PVWJ-022-A1UV-LSAY-P-1NNSN

PVWJ-022-A1UV-LSFY-P-1NN/FSN-AN/10

PVWJ-022-A1UV-LSRY-P-1NN/FSN-AN/10

PVWJ-025-A1UV-LDFY-P-1NN/FSN-AN/10

PVWJ-025-A1UV-LDRY-P-1NN/FSN-AN/10

PVWJ-025-A1UV-LSAY-P-1NN/JNN

PVWJ-025-A1UV-LSAY-P-1NNNN

PVWJ-025-A1UV-LSFY-P-1NN/FSN-AN/10

PVWJ-025-A1UV-LSRY-P-1NN/FSN-AN/10

PVWJ-025-A1UV-RSAY-P-1NN/JNN

PVWJ-034-A1UV-LDFS-P-1NN/H018NN-CP

PVWJ-034-A1UV-LDFY-P-1NN/FSN-AN/10

PVWJ-034-A1UV-LDRY-P-1NN/FSN-AN/10

PVWJ-034-A1UV-LSAY-P-1NN/FNN

PVWJ-034-A1UV-LSFY-P-1NN/FSN-AN/10

PVWJ-034-A1UV-LSRY-P-1NN/FSN-AN/10

PVWJ-046-A1UV-LDFY-P-1NN/FSN-AN/10

PVWJ-046-A1UV-LDRY-P-1NN/FSN-AN/10

PVWJ-046-A1UV-LSFY-P-1NN/FSN-AN/10

PVWJ-046-A1UV-LSRY-P-1NN/FSN-AN/10

PVWJ-064-A1UV-LDFY-P-1NN/FSN-AN/10

PVWJ-064-A1UV-LDRY-P-1NN/FSN-AN/10

PVWJ-064-A1UV-LSAY-P-1NN/JNN

PVWJ-064-A1UV-LSFY-P-1NN/FSN-AN/10

PVWJ-064-A1UV-LSRY-P-1NN/FSN-AN/10

PVWJ-064-A1UV-RSAY-P-1NN/JNN

PVWJ-064-A1UV-RSFY-P-2NNSN/0279

PVWJ-076-A1UV-LDFY-P-1NN/FSN-AN/10

PVWJ-076-A1UV-LDRY-P-1NN/FSN-AN/10

PVWJ-076-A1UV-LSAY-P-1NNN

PVWJ-076-A1UV-LSAY-P-1NNNN

PVWJ-076-A1UV-LSFY-P-1NN/FSN-AN/10

PVWJ-076-A1UV-LSRY-P-1NN/FSN-AN/10

PVWJ-076-AlUV-LSAY-P-1NNNN

PVWJ-098-A1UP-RDFS-P-1NN/KNN-CP

PVWJ-098-A1UV-LDFY-P-1NN/FSN-AN/10

PVWJ-098-A1UV-LDRY-P-1NN/FSN-AN/10

PVWJ-098-A1UV-LSAY-P-1NNNN

PVWJ-098-A1UV-LSFY-P-1NN/FSN-AN/10

PVWJ-098-A1UV-LSRY-P-1NN/FSN-AN/10

PVWJ-098-AIUP-RDFS-P-1NN/KNN-CP

PVWJ-098-AlUV-LSAY-P-1NNNN

PVWJ-130-A1UV-LDFY-P-1NN/FSN-AN/10

PVWJ-130-A1UV-LDRY-P-1NN/FSN-AN/10

PVWJ-130-A1UV-LSAY-P-1NNN

PVWJ-130-A1UV-LSAY-P-1NNNN

PVWJ-130-A1UV-LSFY-P-1NN/FSN-AN/10

PVWJ-130-A1UV-LSRY-P-1NN/FSN-AN/10

PVWJ-130-AlUV-LSAY-P-1NNNN
