Name: A2F160L4S3 A2F Series Fixed Displacement Piston Pump
Brand: Saar HK Electronic Limited
SKU: A2F160L4S3
Availability: InStock

Home Products Piston Pumps

A2F160L4S3 A2F Series Fixed Displacement Piston Pump

Product Details:

Place of Origin:	China
Brand Name:	Saar
Model Number:	A2F160L4S3

Contact Now

Detailed Product Description

Welcome to "Saar Hydraulic", your one-stop hydraulics components resource. Our experienced team has a wealth of experience in supplying hydraulic pumps, valves,cylinders,filters,filter elements.

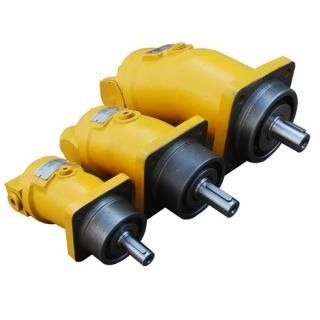

A2F Series Fixed Displacement Piston Pump

Axial piston unit of bent axis design with fixed displacement, for use as either pump or motor in hydrostatic drives, in open or closed circuit. If operated as a pump, the flow is proportional to the drive speed and displacement. If operated as a motor, the output speed is proportional to the swept volume and inversely proportional to displacement. The output torque increases with the pressure drop between the high and low pressure sides.

Features:

·Equivalent with original Rexroth same model.

·High performance rotary group with well-proven spherical control area with the advantages, self-centering low peripheral speed, high efficiency.

·Robust rolling bearing endure long service life.

·Drive shaft capable of adopting radial loading

Detailed Description:

1. Bent axis design with fixed displacement

2. Completely interchangeable with original

3. For use as either pump or motor in hydrostatic drivers,in open of closed circuit

4. High performance rotary group with well-proven spherical control area with the advantages;self-centering low peripheral speed ,high efficiency

5. Robust rolling bearings endure long service life

6. Drive shaft capable of adopting radial loading

7. Size:A2F6, A2F10, A2F12, A2F23, A2F28, A2F45, A2F55, A2F63, A2F80,

A2F107, A2F125, A2F160, A2F200, A2F250, A2F355, A2F500

8. For engineering machinery, maritime boat and industrial machinery etc.

9. Very competitive price

10. 1 year of warranty

Ordering Code:

Technical Specifications

Size	10	12	23	28	45	55	63	80	107	125	160	200	250	355	500
Displacement Vg(ml/r)	9.4	11.6	22.7	28.1	44.3	54.8	63	80	107	125	160	200	250	355	500
Max Speed n max(r/min)	7500	6000	5600	4750	4500	3750	4000	3350	3000	3150	2650	2500	2500	2240	2000
	4700	3750	3750	2800	2850	2360	2550	2120	1900	2120	1650	1700	1400	1250	1120
	5000	4000	4000	3000	3000	2500	2700	2240	2000	2240	1750	1800	1500	1320	1200
	6000	4900	4900	3600	3550	3000	3300	2750	2450	2750	2100	2180	1850	1650	1500
Max Flow Q max(l/min)	71	70	127	133	199	206	253	268	321	394	424	500	625	795	1000
	43	42	83	76	122	125	156	165	197	257	256	330	340	430	543
	46	45	88	82	129	133	165	174	208	272	272	349	364	455	582
	55	55	108	98	157	159	202	213	251	333	326	423	449	568	728
Max Power P max(kw) P=35MPa	41	41	74	78	116	120	147	156	187	230	247	292	365	454	583
	25	25	48	44	71	73	91	96	115	150	149	192	198	251	317
	27	26	51	48	75	78	96	101	121	159	159	204	212	265	340
	32	32	63	57	92	93	118	124	148	194	190	247	262	331	424
Electric Motor Speed n=1450/min	13.6	16.8	32.9	40.7	64.2	79.5	91.3	116	155.2	1812	232	290	363	515	725
	13.2	16.3	31.9	39.5	62.3	77.1	88.6	112.5	150.5	175.8	225	281	352	499	703
	7.9	9.8	19.2	23.7	27.4	46	53	67.7	90	106	135	169	212	300	423
	7.7	9.5	18.6	23	36.3	45	51.7	66	88	130	131	169	212	300	423
Torque(N. m)	15	18	36	44.7	70	87	100	127	170	199	254	318	398	564	795
Torque(N. m)	52	65	126	156	247	305	351	445	595	696	890	1113	1391	1976	2783
Approx Weight (kg)	5	5	12	12	23	23	33	33	44	63	63	88	88	138	1853

The stock list:
