2CY/KCB seriel Chemical Gear Pump for Oil Industrial

Product Details:

Place of Origin:	China
Brand Name:	Saar

Contact Now

Detailed Product Description

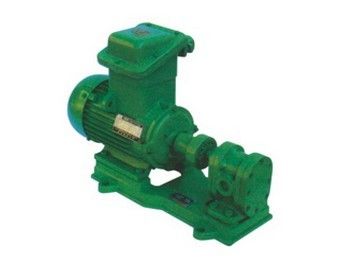

2CY/KCB Chemical Gear Pump for Oil Industrial

Specifications

1. compact structure,

2.easy operation

3.simple maintenance,

4.it's the best gear oil pump for transfer oil

Product description

The Series KCB / 2CY gear oil pumps possess the advantages of simple and compact structure, easy operation and simple maintenance. The Series KCB gear oil pumps are suitable for transporting various oils such as petroleum, diesel and lubricant oils. When using copper gears, the pumps can conveyfluids with low flash points such as gasoline and benzene at temperature below 70°C.

They are widely used in oil reservoirs, piers, ships, mining sites, factories and farms. The Series 2CY gear oil pumps are mainly used for transporting viscous lubricants for mechanical equipment. When equipped with stainless steel gears, the pumps can pump cooking oils or beverages.

Product Application:

(1) The pump can transport various oil, such as crude oil, diesel oil and lubricating oil;

(2) The pump with bronze impeller can transport liquid with low flash point such as gasolene and benzene etc;

(3) Pump with stainless steel can transport beverage and corrosive liquid.

(4) The temperature of medium can not be higher than 70 degrees Celsius.

(5) anti high temperature gear oil pump can transport the liquids with no more than 300 degrees celsius and viscosity of 5*10-5---1.5*10-3m2/s.

(6) The pump is not suitable for hard solid or fibre and mine etc.

Model number meaning

2CY/KCB seriel Chemical Gear Pump for Oil Industrial

Model No#	Caliber	Discharge (L/min)	Eject the pressure (MPa)	Distance (m)	Motor power (Kw)
KCB-18.3 2CY-1.1/014.5-2	3/4"	18.3	14.5	5	1.5
KCB-33.3 2CY-2/14.5-2	3/4"	33.3	14.5	5	2.2
KCB-55 2CY-3.3/3.3-1	1"	55	0.33	5	1.5
KCB-83.5 2CY-5/3.5-2	1"	44	0.33	5	2.2
KCB-83.5 2CY-5/5-2	11/2"	83.3	0.33	5	2.2
KCB-200 2CY-8/3.3-2	11/2"	83.3	0.33	5	3
KCB-200 2CY-12/1.3-2	2"	200	0.33	5	4
KCB-200 2CY-12/3.3-2	2"	200	0.33	5	4
KCB-200 2CY-12/6-2	2"	200	0.33	5	5.5
KCB-200 2CY-18/10-2	2"	200	0.33	5	5.5
KCB-200 2CY-18/3.6-2	21/2"	200	0.33	5	7.5
KCB-300 2CY-18/3.6-2	3"	300	0.33	5	5.5
KCB-300 2CY-18/6-2	3"	300	0.33	5	7.5
KCB-483.3 2CY-29/3.6-2	3"	483.3	0.33	5	7.5
KCB-483.3 2CY-29/3.6-2	3"	483.3	0.33	5	11
KCB-633 2CY-38/2.8-2	4"	633	0.28	5	11
KCB-633 2CY-38/8-2	4"	633	0.28	5	22
KCB-960 2CY-60/3-2	4"	960	0.3	5	18.5
KCB-960 2CY-60/6-2	4"	960	0.3	5	30
KCB-1667 2CY100/3-2	6"	1667	0.3	5	30
KCB-1667 2CY100/6-2	6"	1667	0.6	5	55
KCB-2000 2CY120/3-2	6"	2000	0.3	5	30
KCB-2000 2CY100/6-2	6"	2000	0.6	5	55
KCB-2500 2CY100/3-2	6"	2500	0.3	5	37
KCB-2500 2CY100/7-2	6"	2500	0.7	5	75
