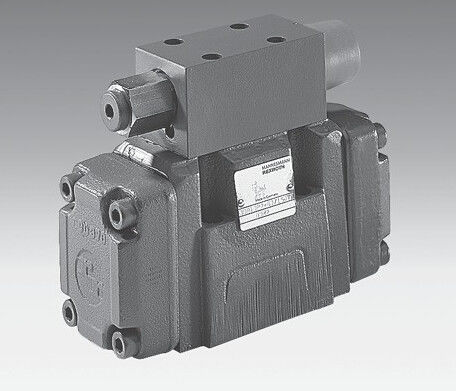

Rexroth 3DR10P Series Pressure Reducing Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	Rexroth 3DR10P Series Pressure Reducing Valve

Contact Now

Detailed Product Description

Rexroth 3DR10P Series Pressure Reducing Valve

Pressure reducing valve, pilot operated,

type 3DR

Nominal size 10

Series 6X

Maximum operating pressure 315 bar

Maximum flow 120 L/min

Features

– Valve for the reduction (P to A) and limitation (A to T) of a pressure in a hydraulic system

– For sub-plate mounting, porting pattern DIN 24 340 form A,

ISO 4401 and CETOP-RP 121 H, sub-plates to catalogue sheet RE 45 054 (separate order)

– 4 pressure stages

– 4 adjustiment elements:

• rotary knob

• sleeve with hexagon and protective cap

• lockable rotary knob with scale

• rotary knob with scale

Rexroth 3DR10P Series Pressure Reducing Valve Ordering Code:

Rexroth 3DR10P Series Pressure Reducing Valve Model List:

R900737366	3DR10P7-6X/200Y/00M
R900916657	3DR10P4-6X/100Y/00M
R900916657	3DR10P4-6X/100Y/00M
R900916659	3DR10P6-6X/100Y/00M
R900916660	3DR10P5-6X/200Y/00M
R900916661	3DR10P5-6X/315Y/00M
R900916663	3DR10P5-6X/100Y/00M
R900916663	3DR10P5-6X/100Y/00M
R900917784	3DR10P6-6X/315Y/00M
R900917785	3DR10P6-6X/200Y/00V
R900917786	3DR10P5-6X/100Y/00V
R900917786	3DR10P5-6X/100Y/00V
R900917787	3DR10P4-6X/200Y/00M
R900917787	3DR10P4-6X/200Y/00M
R900917788	3DR10P5-6X/200Y/00V
R900917790	3DR10P4-6X/315Y/00V
R900917790	3DR10P4-6X/315Y/00V
R900917791	3DR10P4-6X/315Y/00M
R900917791	3DR10P4-6X/315Y/00M
R900917792	3DR10P6-6X/200Y/00M
R900917793	3DR10P6-6X/100Y/00V
R900917794	3DR10P5-6X/315Y/00V
R900917795	3DR10P4-6X/100Y/00V
R900917795	3DR10P4-6X/100Y/00V
R900917796	3DR10P7-6X/100Y/00M
R900917797	3DR10P4-6X/200Y/00V
R900917797	3DR10P4-6X/200Y/00V
R900920718	3DR10P5-6X=50Y/00M=PL
R900920718	3DR10P5-6X=50Y/00M=PL
R900920719	3DR10P5-6X=200Y/00M=PL
R900920719	3DR10P5-6X=200Y/00M=PL
R900921663	3DR10P5-6X/50Y/00M
R900932005	3DR10P5-6X=100Y/00M=PL
R900932005	3DR10P5-6X=100Y/00M=PL
R900932324	3DR10P4-6X/50Y/00M
R900932324	3DR10P4-6X/50Y/00M
R900940485	3DR10P6-6X/100Y/00MSO23
R900940485	3DR10P6-6X/100Y/00MSO23
R900945112	3DR10P6-6X/50Y/00MSO23
R900945112	3DR10P6-6X/50Y/00MSO23
R900973873	3DR10P5-6X/50Y/00V
R901015252	3DR10P6-6X/50Y/00M
R901030861	3DR10P7-6X/200Y/00V
R901047460	3DR10P5-6X/100Y/00MSO189
R901047460	3DR10P5-6X/100Y/00MSO189
R901054790	3DR10P5-6X/100Y/00MSO63
R901054790	3DR10P5-6X/100Y/00MSO63
R901058305	3DR10P5-6X/200Y/00MSO189
R901058305	3DR10P5-6X/200Y/00MSO189
R901068395	3DR10P7-6X/100Y/00V
R901149319	3DR10P7-6X/315Y/00M
R901210096	3DR10P5-6X/315Y/00MSO63
R901210096	3DR10P5-6X/315Y/00MSO63
R901211014	3DR10P5-6X/200Y/00MSO63
R901211014	3DR10P5-6X/200Y/00MSO63
R901243542	3DR10P5-6X/50Y/00MSO63
R901243542	3DR10P5-6X/50Y/00MSO63
