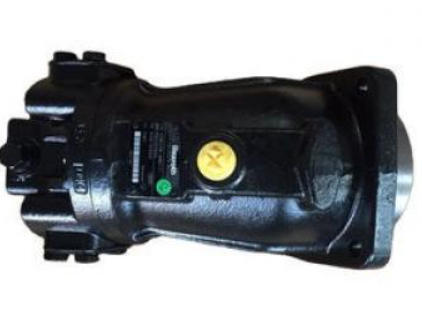

Rexroth Axial Piston Fixed Motor R902203296 A2FM80/61W-VAB027 A2FM Series Bent-Axis Design

Rexroth Axial Piston Fixed Motor A2FM Series


Series 6
Size Nominal pressure/Maximum pressure
5 315/350 bar
10 to 200 400/450 bar
250 to 1000 350/400 bar
Open and closed circuits

Features


––Fixed motor with axial tapered piston rotary group of bentaxis design, for hydrostatic drives in open and closed circuits
––For use in mobile and stationary applications
––The output speed is dependent on the flow of the pump and the displacement of the motor.
––The output torque increases with the pressure differential between the high-pressure and the low-pressure side.
––Finely graduated sizes permit far-reaching adaptation to the drive case
––High power density
––Small dimensions
––High total efficiency
––Good starting characteristics
––Economical design
––One-piece tapered piston with piston rings for sealing
