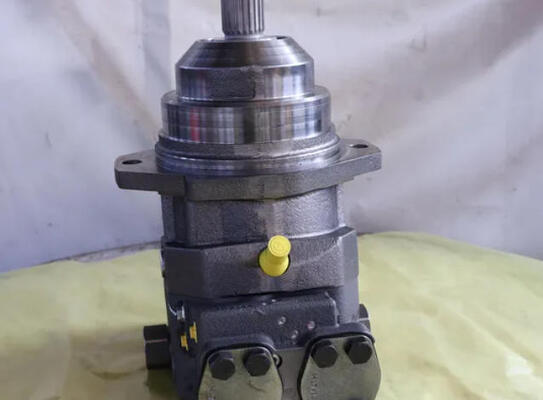

Rexroth Variable Plug-In Motor R909605930 A6VE107HA2/63W-VZL027A Bent-Axis Design, Automatic Control, High-Pressure Related

Rexroth Variable Plug-In Motor A6VE bent-axis design, variable

Series 6
Size Nominal pressure / Peak pressure
28 to 160 400 / 450 bar
250 350 / 400 bar
Open and closed circuits

Features

– Variable plug-in motor with axial tapered piston rotary group of bent axis design for hydrostatic drives in open and closed circuits
– Easy assembly, simply «plugs-in» into mechanical gearboxes (no installation tolerances to consider)
– The design of the motor with the mounting flange in the center of the housing allows it to be almost fully integrated into a mechanical gearbox to give an extremely compact unit
– For use in mobile applications
– Installation ready and tested unit
– The displacement is infinitely variable from Vg max to Vg min = 0
– The output speed is dependent on the flow of the pump and the displacement of the motor
– The torque increases with the pressure differential between the high and low pressure side and with increasing displacement
