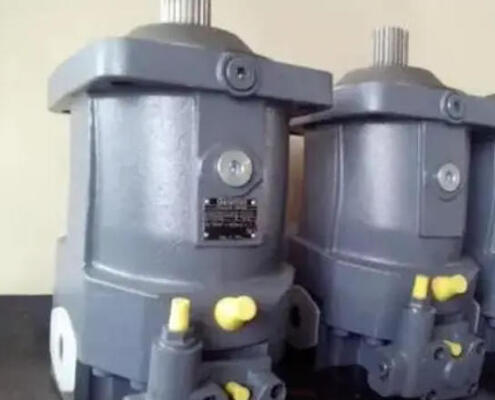

Rexroth Axial Piston Variable Motor R902016727 AA6VM160EP1/63W-VSD527DB Bent-Axis Design, Variable Version SAE, EP - Electric Control With Proportional Solenoid

Rexroth Axial Piston Variable Motor AA6VM (A6VM)

Series 6
Size Nominal pressure/Peak pressure
28 to 200 5800 ps (400 bar) / 6500 psi (450 bar)
250 to1000 5100 psi (350 bar) / 5800 psi (400 bar)
Open and closed circuits

Contents
HD - Hydraulic control, pilot-pressure related
HZ - Hydraulic two-point control
EP - Electric control with proportional solenoid
EZ - Electric two-point control, with switching solenoid
HA - Automatic control, high-pressure related
DA - Hydraulic control, speed related
Electric travel direction valve (for DA, HA.R)
Unit dimensions, size 28 (ISO Version)
Unit dimensions, size 55 (SAE Version)
Unit Dimensions, Size 80 (SAE Version)
Unit dimensions, size 107 (SAE Version)
Unit dimensions, size 140 (ISO Version)
Unit dimensions, size 160 (SAE Version)
Unit dimensions, size 200 (SAE Version)
Unit dimensions, size 250 (SAE Version)
Unit dimensions, size 355 (ISO Version)
Unit dimensions, size 500 (ISO Version)
Unit dimensions, size 1000 (ISO Version)
BVD counterbalance valve (sizes 55 to 160)
Swivel angle indicator (Sizes 250 to 1000)
Speed measurement (sizes 28 to 500)
Connectors for solenoids (for EP, EZ, HA.U, HA.R, DA only)

Features
– Variable motor with an axial tapered piston rotary group of bent-axis design for hydrostatic drives in open and closed circuits
– For use in mobile and stationary application areas
– The wide control range enables the variable motor to satisfy the requirement for high speed and high torque.
– The displacement is infinitely variable from Vg max to Vg min = 0.
– The output speed depends on the flow of the pump and the displacement of the motor.
– The output torque increases with the pressure differential between the high and low pressure side and with increasing displacement.
– Wide control range with hydrostatic transmission
– Wide selection of control devices
– Cost savings through elimination of gear shifts and possibility of using smaller pumps
– Compact, robust bearing system with long service life
– High power density
– Good starting characteristics
– Low moment of inertia
