YOX Series Fluid Coupling YOX750

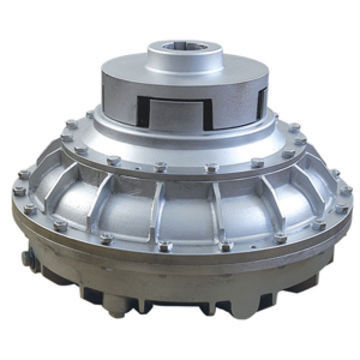

Large Image : YOX Series Fluid Coupling YOX750

Product Details:

Place of Origin:	China
Brand Name:	SAAR
Model Number:	YOX Series Fluid Coupling YOX750

Contact Now

Detailed Product Description

YOX Series Coupling

Type: YOX150---YOX1320

Same structure type: YOXII, TVA

Functions

Motor load free start-up

Overload protection for motor and machine

Effective shock-absorption

Load compensation for multi-motor drives

Applications: Mainly used in the mining, metallurgical, cement, chemicals, construction, building materials, electric power, telecommunications, textiles, and transportation departments.

Main technical data of YOX series constant filling fuid couplings
Specifications Model	Input Speed	Transfer of Power	Coefficient	Efficiency	Oil-filled volumeq(l)
Specfication	Input speed	Range of power	Over load	Efficiency	Volume of filling iol
type	n(r.p.m)	transmitted N(kw)	Coeff Tg		%40qmin	%80qmax
YOX-150	1500	0.2~0.4	2~2.7	0.97	0.22	0.45
	1000	0.05~0.2
YOX-180	3000	4~7.2	2~2.5	0.97	0.25	0.5
	1500	0.5~0.9
YOX-190	3000	4.5 ~ 9.0	2~2.5	0.97	0.4	0.8
	1500	0.6~1.1
YOX-200	3000	5.5~11	2~2.5	0.95	0.5	1.2
	1500	0.75~1.5
YOX-220	3000	11.1~22	2~2.5	0.95~0.98	0.8	1.6
	1500	10~18.5
YOX-250	3000	15~30	2~2.5	0.95	1.1	2.2
	1500	2.5~5.0
YOX-280	1500	4.0~7.5	2~2.5	0.95	1.5	3
	1000	1.5~3.0
YOX-320	1500	7.5~15	2~2.5	0.96	2.5	5
	1000	2.2~4.5
YOX-340	1500	11~22	2~2.5	0.96	3	6
	1000	3.0~7.0
YOX-360	1500	15~30	2~2.5	0.96	3.5	7
	1000	5.5~10.5
YOX-400	1500	22~45	2~2.5	0.97	4.2	9.2
	1000	7.5~15
YOX-420	1500	37~60	2~2.5	0.97	6	12
	1000	11~18.5
YOX-450	1500	45~75	2~2.5	0.97	6.5	13
	1000	18.5~22
YOX-500	1500	70~132	2~2.5	0.95	10	20
	1000	25~45
YOX-560	1500	132~280	2~2.5	0.95	14	28
	1000	45~90
YOX-600	1500	200~375	2~2.5	0.95	22.5	45
	1000	60~120
YOX-650	1500	280~500	2~2.5	0.96	25	50
	1000	110~180
YOX-710	1500	155~280	2~2.5	0.95~0.98	32	64
	1000	60~115
YOX-750	1000	200~360	2~2.5	0.96	40	80
	750	80~160
YOX-800	1000	280~360	2~2.5	0.96	50	100
	750	110~220
	600	60~140
YOX-875	1000	360~680	2~2.5	0.96	56	112
	750	150~280
YOX-1000	750	350~650	2~2.5	0.97	70	140
	600	180~360
YOX-1150	750	525~1195	2~2.5	0.97	85	150
	600	265~615
YOX-1250	750	780~1800	2~2.5	0.97	110	210
	600	350~953
	500	235~555
YOX-1320	750	995~2380	2~2.5	0.96	125	235
	600	635~1310
	500	300~725
