Yuken 03 Series Modular Valve

Product Details:

Place of Origin:	Japan
Brand Name:	Yuken
Model Number:	Yuken Modular Valve 03 Series

Contact Now

Detailed Product Description

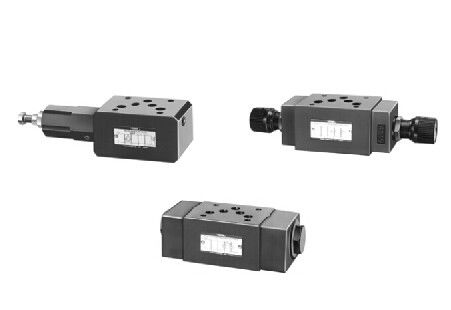

Yuken 03 Series Modular Valve

Mounting Surface : ISO 4401-AC-05-4-A, CETOP-5, NFPA-DO2Up to 25 MPa (3630 PSI), 70 L /min (18.5 U.S.GPM)

The modular valves are functional elements with which a hydraulic system can be composed and built easily by stacking

them with the mounting bolts. Therefore, no piping is required for the manufacture of the hydraulic systems.

Yuken's 03 Series Modular Valves are widely used to compose the hydraulic systems for the various industrial and marine equipment including machine tools, special purpose machines, steel mill equipment and ships. The valves have standardized mounting surface conforming to ISO 4401-AC-05-4-A and optimum thickness for the stacking.

Yuken 03 Series Modular Valve Model List:

MAC-03-10

MBA-03-B-30

MBA-03-H-30

MBB-03-B-30

MBB-03-H-30

MBK-03-01-10

MBK-03-02-10

MBK-03-03-10

MBK-03-04-10

MBK-03-05-10

MBP-03-B-30

MBP-03-H-30

MBW-03-B-30

MBW-03-H-30

MCA-03-0-10

MCA-03-0-20

MCA-03-2-10

MCA-03-2-20

MCB-03-0-10

MCB-03-0-20

MCB-03-2-10

MCB-03-2-20

MCP-03-0-10

MCP-03-0-20

MCP-03-2-10

MCP-03-2-20

MCT-03-0-10

MCT-03-0-20

MCT-03-2-10

MCT-03-2-20

MDC-03-A-10

MDC-03-B-10

MDS-03-10

MDS-03-1090

MFA-03-X-11

MFA-03-Y-11

MFB-03-X-11

MFB-03-Y-11

MFP-03-11

MFW-03-X-11

MFW-03-Y-11

MHA-03-A-20

MHA-03-B-20

MHA-03-C-20

MHA-03-N-20

MHB-03-A-20

MHB-03-B-20

MHB-03-C-20

MHB-03-N-20

MHP-03-A-20

MHP-03-B-20

MHP-03-C-20

MHP-03-N-20

MMC-03-T-1-21

MMC-03-T-2-21

MMC-03-T-3-21

MMC-03-T-4-21

MMC-03-T-5-21

MMC-03-T-6-21

MMC-03-T-7-21

MPA-03-2-20

MPA-03-2-2001

MPA-03-4-20

MPA-03-4-2001

MPB-03-2-20

MPB-03-2-2001

MPB-03-4-20

MPB-03-4-2001

MPW-03-2-20

MPW-03-2-2001

MPW-03-4-20

MPW-03-4-2001

MRA-03-B-30

MRA-03-H-30

MRB-03-B-30

MRB-03-H-30

MRP-03-B-30

MRP-03-H-30

MSA-03-X-40

MSA-03-Y-40

MSB-03-X-40

MSB-03-Y-40

MSCP-03-20

MSP-03-30

MSTA-03-X-20

MSTB-03-X-20

MSTW-03-X-20

MSW-03-X-40

MSW-03-Y-40
