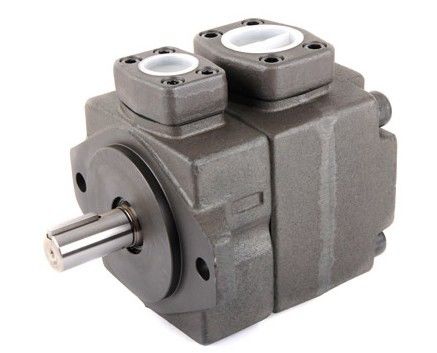

High-pressure fixed vane pump PV2R3 series

: Large Image : High-pressure fixed vane pump PV2R3 series

Product Details:

Place of Origin:	China
Brand Name:	Saar
Model Number:	PV2R3-76/PV2R3-94/PV2R3-116

Contact Now

Detailed Product Description

High-pressure fixed vane pump PV2R3 series

1,High-pressure fixed vane pump PV2R3 quantitative high-pressure, low noise designed. Quantitative high-pressure vane pump PV2R2 wide range of applications, especially suitable for rubber machinery and all kinds of machine tools.

2, High-pressure fixed vane pump PV2R3heart is easy to install, easy to disassemble repair. Quantitative high-pressure vane pump PV2R2 can change the steering.

High-pressure fixed vane pump PV2R3 specification:

PV2R3

-76

-F

Model No#

Displacement
mℓ/rev

Mounting way

Rotation(View from shaft side)

The direction of the oil-outlet port

The direction of the oil-inlet port

Fixed Vane Pumps

(High pressure)

Reference the below specification

F:Flange
L:Foot

R: Clockwise

L: Counterclockwise

U:Up
D:Down
R:Right
L:Left(Standard)

U:Up
D:Down
R:Right(Standard)
L:Lef

High-pressure fixed vane pump PV2R3 specification:

Model No#	Pressure MPa		Displacement mℓ/rev	Pipe Size (PT)		Rotation rpm		Weight kg
	Rated	Max		In	Out	Max	Min	Flange	Foot
PV2R3-76	17 .5	21	26.1	2"	11/4"	1800	950	36.7	46.7
PV2R3-94			33.0
PV2R3-114	16	17.5	41.3

The common pump model no# list:

PV2R3-76-F-R PV2R3-94-F-R

PV2R3-116-F-R PV2R3-76-L-R

PV2R3-94-L-R PV2R3-116-L-R

PV2R3-76-F-L PV2R3-94-F-L

PV2R3-116-F-L PV2R3-76-L-L

PV2R3-94-L- L PV2R3-116-L-L
