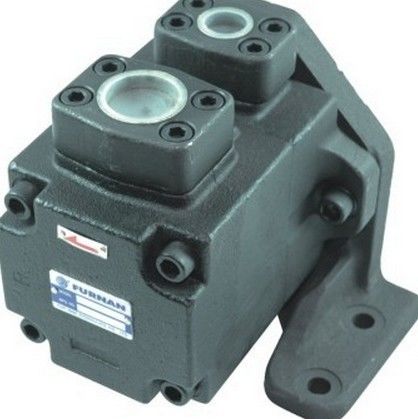

High-pressure fixed vane pump PV2R1 series

High-pressure fixed vane pump PV2R1 series

High-pressure fixed vane pump PV2R1 series

Product Details:

Place of Origin: China
Brand Name: Saar
Model Number: PV2R1-06/PV2R1-06/PV2R1-08/PV2R1-10/PV2R1-12/PV2R1-14/PV2R1-17/PV2R1-19/PV2R1-23/PV2R1-25/PV2R1-31
Contact Now
Detailed Product Description

High-pressure fixed vane pump PV2R1 series



1,High-pressure fixed vane pump PV2R1 series quantitative high-pressure, low noise designed. Quantitative high-pressure vane pump PV2R1 wide range of applications, especially suitable for rubber machinery and all kinds of machine tools.
2, High-pressure fixed vane pump PV2R1 series heart is easy to install, easy to disassemble repair. Quantitative high-pressure vane pump PV2R1 can change the steering.



High-pressure fixed vane pump PV2R1  specification:

PV2R1 -06 -F R L R
Model No# Displacement
mℓ/rev
Mounting way Rotation(View from shaft side) The direction of the oil-outlet port
The direction of the oil-inlet port

Fixed Vane Pumps

(High pressure)
Reference the below specification F:Flange
L:Foot
 R: Clockwise

 L: Counterclockwise
U:Up
D:Down
R:Right
L:Left(Standard)
U:Up
D:Down
R:Right(Standard)
L:Lef





High-pressure fixed vane pump PV2R1 specification:



Model No#      Pressure MPa         Displacement
mℓ/rev
 Pipe Size (PT)       Rotation  rpm      Weight kg
    Rated Max           In Out Max Min Flange Foot
PV2R1-06 17 .5 21 6.1 1" 1/2" 1800 950 9.0 11.2
PV2R1-08 8.0
PV2R1-10 10.1
PV2R1-12 12.2
PV2R1-14 13.7
PV2R1-17 16.6
PV2R1-19 18.6
PV2R1-23 22.7
PV2R1-25 25.3
PV2R1-31 16 17.5 31.0



The common pump model no# list:



PV2R1-06-F-L PV2R1-25-F-L
PV2R1-06-F-R PV2R1-25-F-R
PV2R1-06-L-L PV2R1-25-F-R
PV2R1-06-L-R PV2R1-25-L-L
PV2R1-06-L-R  PV2R1-25-L-R
PV2R1-08-F-L PV2R1-31-F-L
PV2R1-08-F-R PV2R1-31-F-R
PV2R1-08-F-R  PV2R1-31-L-L
PV2R1-08-L-L PV2R1-31-L-R
PV2R1-08-L-R PV2R1-31-L-R
PV2R1-08-L-R  PV2R1-33-F-R
PV2R1-10-F-L PV2R1-33-L-R
PV2R1-10-F-R PV2R2-22-F-R
PV2R1-10-F-R  PV2R2-22-L-R
PV2R1-10-L-L PV2R2-22-L-R
PV2R1-10-L-R PV2R2-26-F-R
PV2R1-10-L-R  PV2R2-26-L-R
PV2R1-12-F-L PV2R2-26-L-R
PV2R1-12-F-R PV2R2-33-F-R
PV2R1-12-L-L PV2R2-33-F-R
PV2R1-12-L-R PV2R2-33-L-R
PV2R1-12-L-R  PV2R2-38-F-R
PV2R1-14-F-L PV2R2-38-L-R
PV2R1-14-F-R PV2R2-38-L-R
PV2R1-14-F-R  PV2R2-41-F-R
PV2R1-14-L-L PV2R2-41-L-R
PV2R1-14-L-R PV2R2-41-L-R
PV2R1-14-L-R  PV2R2-47-F-R
PV2R1-17-F-L PV2R2-47-L-R
PV2R1-17-F-R PV2R2-53-F-R
PV2R1-17-F-R  PV2R2-53-L-R
PV2R1-17-L-L PV2R2-59-F-R
PV2R1-17-L-R PV2R2-59-L-R
PV2R1-19-F-L PV2R2-65-F-R
PV2R1-19-F-R PV2R2-65-L-R
PV2R1-19-L-L PV2R2-75-F-R
PV2R1-19-L-R PV2R2-75-L-R
PV2R1-19-L-R  PV2R3-116-L-R
PV2R1-23-F-L PV2R3-125-L-R
PV2R1-23-F-R PV2R3-60-F-R
PV2R1-23-F-R  PV2R3-60-L-R
PV2R1-23-L-L PV2R3-66-F-R
PV2R1-23-L-R PV2R3-66-L-R
PV2R1-23-L-R  PV2R3-76-L-R
  PV2R3-94-L-R
