Place of Origin: | China |
Brand Name: | Saar |
Model Number: | VA1A1-0808F-A/VA1A1-1212F-A/VA1A1-1515F-A |
VA1A1 | -0808 | -A2 | A2 | F |
Model No# | Displacement mℓ/rev | Pressure range MPa | Pressure range MPa | Installation |
Double variable vane pump VA1A1(low pressure) | According to the specification table | According to the specification table | According to the specification table |
F:Flange L:Foot |

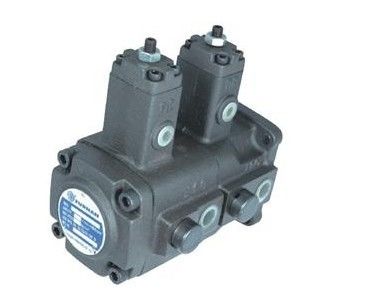

Double variable vane pump VA1A1 (low pressure) Specification table
Model No# | Max Pressure MPa | Displacement mℓ/rev | Flow (no load ℓ/min) | Pressure range MPa |
revolutions
rpm |
Weight kg | |||
1500rpm | 1800rpm | Max | Mini | Flange type | Foot type | ||||
VA1A1-0808F-A* |
7 | 4.4+4.4 | 6.7+6.7 | 8+8 |
A1:0.8∼2.0 A2:1.5∼3.5 A3:3.0∼7.0 |
1800 | 800 | 9.0 | 10.0 |
VA1A1-1212F-A* |
6.7+6.7 | 10.0+10.0 | 12+12 | ||||||
VA1A1-1515F-A* |
8.3+8.3 | 12.5+12.5 | 15+15 |
