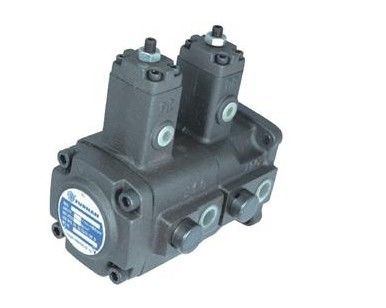

Double variable vane pump VB1B1 Series

Product Details:

Place of Origin:	China
Brand Name:	Saar
Model Number:	VB1B1-2020F-A/VB1B1-2424F-A

Contact Now

Detailed Product Description

Double variable vane pump VB1B1

Double variable vane pump VB1B1 (low pressure) Features

1, double variable vane pump VB1B1 (low pressure) by two pairs of variable vane pump VB1B1 (low pressure) combined with one, using a common drive shaft.

2, double variable vane pump VB1B1 (low pressure) by a motor-driven, reducing installation space.

3, double variable vane pump VB1B1 (low pressure) can also supply pressure and flow of different circuits.

4, double variable vane pump VB1B1 (low pressure) easy assembly, composed of the motor can be directly coupled motor pump combination.

Double variable vane pump VB1B1 (low pressure) Model Description

VB1B1	-2020	-A2	A2	F
Model No#	Displacement mℓ/rev	Pressure range MPa	Pressure range MPa	Installation
Double variable vane pump VB1B1 (low pressure)	According to the specification table	According to the specification table	According to the specification table	F:Flange L:Foot

Double variable vane pump VE1E1 (low pressure) Specification table

Model No#	Max Pressure MPa	Displacement mℓ/rev	Flow (no load ℓ/min)		Pressure range MPa	revolutions rpm		Weight kg
			1500rpm	1800rpm		Max	Mini	Flange type	Foot type
VB1B1-2020F-A*	7	11.1+11.1	16.7+16.7	20+20	A1:0.8∼2.0 A2:1.5∼3.5 A3:3.0∼7.0	1800	800	9.5	10.5
VB1B1-2424F-A*		13.3+13.3	20.0+20.0	24+24
