Double variable vane pump VP series

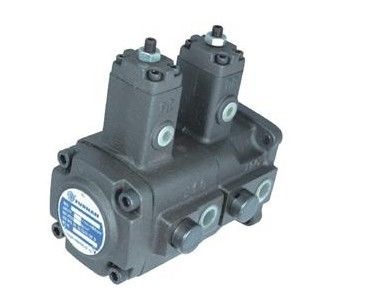

: Large Image : Double variable vane pump VP series

Product Details:

Place of Origin:	China
Brand Name:	Saar
Model Number:	VP-08-08/VP-12-12/VP-15-15/VP-20-20/VP-25-25/VP-30-30/VP-40-40

Contact Now

Detailed Product Description

Double variable vane pump VP Series

Double variable vane pump VP series Features

1, double variable vane pump VP series (low pressure) by two pairs of variable vane pump VP-08-08 (Low) combined with one, using a common drive shaft.

2, double variable vane pump VP series (low pressure) by a motor-driven, reducing installation space.

3, double variable vane pump VP series (low pressure) can also supply pressure and flow of different circuits.

4, double variable vane pump VP series (low voltage) easy assembly, composed of the motor can be directly coupled motor pump combination.

Double variable vane pump VP series (Low) Model Description

For example: VP-08-08-A2-A2-F

VP Series

-08-08

-A2

Mode description

displacement
mℓ/rev

Pressure range
MPa

Pressure range

MPa

installation way

Double variable vane pump

according to the specification table

F: Flange type
L: Foot type

Double variable vane pump VP-08-08 (Low) Specifications table

Model No#	Max pressure MPa	Displacement mℓ/rev	Flow(No load ℓ/min)		Pressure range MPa	revolutions rpm		Weight kg
Model No#	Max pressure MPa	Displacement mℓ/rev	1500rpm	1800rpm	Pressure range MPa	Max	Mini	Flange
VP-08-08	7	4.4+4.4	6.7+6.7	8+8	A1:0.8∼2.5 A2:2.0∼4.5 A3:4.0∼7.0	1800	800	9.0
VP-12-12		6.7+6.7	10.0+10.0	12+12
VP-15-15		8.3+8.3	12.5+12.5	15+15
VP-20-20		11.1+11.1	16.7+16.7	20+20				9.5
VP-25-25		13.9+13.9	21+21	25+25				9.5
VP-30-30		16.7+16.7	25+25	30+30				18.0
VP-40-40		22.2+22.2	33.3+33.3	40+40				18.0
