Product Details:
|

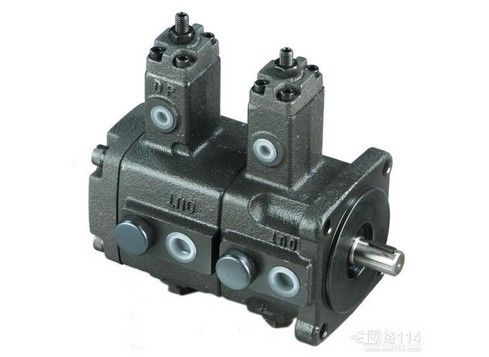

Low pressure double variable vane pump TCVVP series
Low pressure double variable vane pump TCVVP characteristics
1, low pressure double variable vane pump TCVVP, low noise inoperation, smooth running, good wear resistance, suitable for the use of machine tools and special machine.
2, low pressure double variable vane pump TCVVP, small temperature rise, power loss is small, built-in automatic pressure compensation design.
Low pressure double variable vane pump TCVVP model description
For example: TCVVP-F-1212-A2-02
TCVVP | -F | 12 | 12 | -A2 | -02 |
Model Description | installation way |
displacement ℓ/min |
displacement ℓ/min |
Pressure range | Design code |
Low pressure variable vane pump | F: Flange type | According to the specification table | According to the specification table |
1:5∼18bar 2:15∼35bar 3:30∼55bar 4:50∼75bar |
02 |
Low pressure double variable vane pump TCVVP specification table
Model No# | Revolutions (1800rpm) | Pressure range | Revolutions rpm | ||
Max | Mini | ||||
TCVVP-F1212 | 12 l/min | 12 l/min |
1:5∼18bar 2:15∼35bar 3:30∼55bar 4:50∼75bar |
1800 | 800 |
TCVVP-F1515 | 15 l/min | 15 l/min | |||
TCVVP-F2020 | 20 l/min | 20 l/min | |||
TCVVP-F2323 | 23 l/min | 23 l/min | |||
TCVVP-F2626 | 26 l/min | 26 l/min | |||
TCVVP-F3030 | 30 l/min | 30 l/min | |||
TCVVP-F4040 | 40 l/min | 40 l/min |
